Power logger PW336 series

with LCD displaycompactmulti-channel

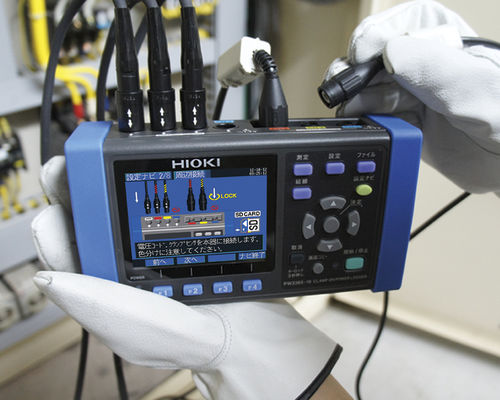

CLAMP ON POWER LOGGER PW3365 Eliminate the Risk of Short-Circuits and Electrical Accidents Overview Hioki Clamp On Power Meters are multi-channel power measuring devices utilizing clamp sensor input to accurately and safely measure power on single-phase to three-phase lines. The PW3365 power logger takes safety and convenience one step further by being the world’s first non-metallic contact power meter that utilizes completely covered voltage clips that can be attached to any part of a cable or busbar. Customers can now monitor power demand and other power parameters to aid in energy audits and validate energy saving measures without risk of short-circuit accidents, power interruptions, or bodily injury due to electrocutions. Key Features • - Measure voltage from the top of the cable with zero risk of short circuit • - Supports single to three-phase, 4-wire circuits • - Measure between 90V to 520V • - Display harmonics up to the 13th order • - Slim, compact design that can be placed anywhere • - Store months of data on SD cards • - QUICK SET function guides you in making the right connections Safely and easily measure power without the need to shut off the circuit breaker first with a clamp-on power logger Although technicians had to connect instruments to metal terminals in order to measure voltage when measuring power in the past, Hioki’s newly developed no-metal-contact voltage sensor makes it possible to measure voltage simply by clamping the sensor around an insulated wire.
