Resistance measuring device RM series

digitalbenchtophigh-speed

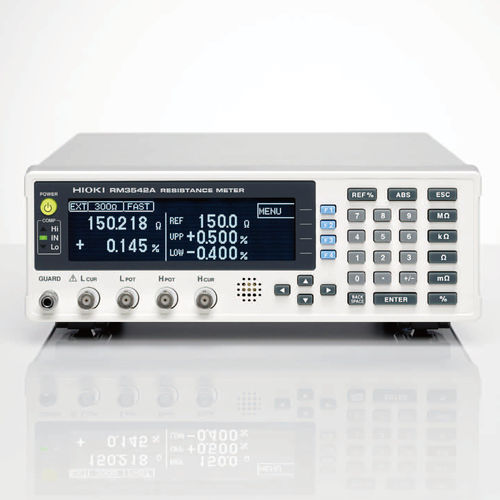

RESISTANCE METER RM3542A High-Speed Resistance Meter Ideal for Automated Lines; Compatible with Super-Small Electronic Components Overview Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3542A delivers high-speed and high-stability measurements and improved productivity by minimizing variations and reducing contact errors. In addition, the low-impact measurement technology lets you measure resistance for miniature 008004-size electronic parts. Key Features • Applied voltage limit function lets you switch the detection voltage to 5 V or less • Contact improvement function suppresses rush current to aid in probing of super-small components • Extensive selection of measurement ranges ensures the right detection voltage and delivers stable measurement • Scaling function corrects for mounting state and test stage differences Gently measure minuscule electronic components (0201 size) with functionality for limiting the applied voltage By limiting the voltage that is applied during measurement to 5 V or less, the RM3542A makes it possible to measure 0201-size components that have low rated voltages without stressing the parts. Ensure reliable contact quickly with the contact improvement function The RM3542A improves contact with measurement specimens by eliminating oxide films and dirt between the probes and specimens. By addressing faulty contact, the instrument facilitates stable measurement and reduces the contact error rate, boosting productivity.
