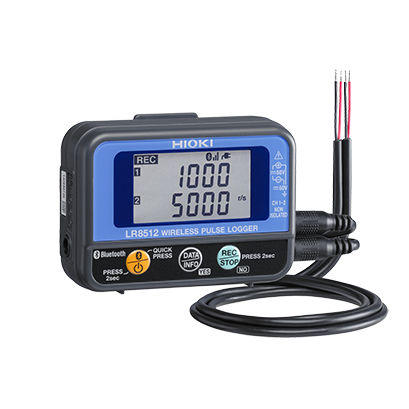

WIRELESS PULSE LOGGER
LR8512
Perform Pulse Integration of Vehicle Speed or Flow Rate for Equipment such as Air Conditioners
Overview
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8512 is a wireless, 2-channel pulse input module that utilizes Bluetooth® technology to either send measured data to the Hioki LR8410 Wireless Logging Station or to an Android (TM) tablet.
Data can be downloaded using Hioki’s tablet and smartphone app (for Android devices).
Search for “HIOKI” and download the Wireless Logger Collector!
Key Features
• - For pulse totalization and measuring logical ON/OFF signals or revolutions
• - Compact, two-channel model fits where other devices don’t
• - Download measurement data to a tablet or computer with Bluetooth® wireless technology or capture in real time with the LR8410
• - Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
• - Store 500,000 data points per channel
Functionality - [Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included)
Android smartphone or Android tablet terminal
(Software can be downloaded free of charge from Google Play.)
*Communication range varies with the performance of the computer or tablet
(up to a line-of-sight distance of roughly 30 m)
[Used as logging module (Real-time measurement) ]
Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m
