Non-contact tachometer FT34 series

handhelddigital

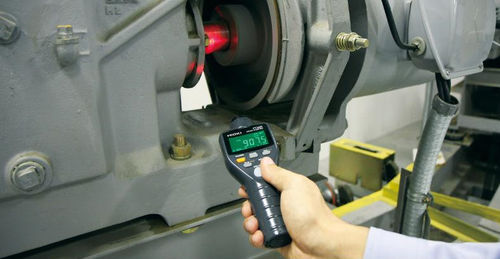

TACHO HiTESTER FT3405, FT3406 Wide Range Industrial-Grade Digital Tachometers for Non-Contact and Contact Rotation and Cycle Measurements Overview The Hioki FT3405 and FT3406 are portable, contactless digital tachometers that use reflected visible spectrum light to measure the speed of a rotating object to which reflective tape has been affixed. The instruments can also be used as a contact-type tachometer by attaching the Z5003 Contact Adapter. Key Features • - Convenient analog and pulse output functions • - Dust-proof construction and drop-proof to 1 meter • - Wide measurement range of 0.5000 r/s (30.00 r/min) to 99990 r/min • - Contact style testing available with optional contact adapter • - Convenient analog and pulse output functions (FT3406 only) • - Optional AC Adapter (FT3406 only) Contactless measurement Contactless performance ensures safety and peace of mind when measuring rotating objects that are recessed inside equipment or whose movement poses a hazard. Simply apply reflective tape to the object being measured, point the instrument at the tape, and press the button. The instrument can detect rotation from a distance of 500 mm while illuminating the measurement location with red light to help you aim it precisely. The HOLD key turns red following accurate measurement and the instrument beeps, so there’s no need to worry about whether the target object has been measured properly.
