Data connector FX2 Serieswire-to-boardSMTparallel
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- SMT, wire-to-board
- Shape
- parallel
- Connection type
- locking
- Material
- metal
- Product applications
- board, cable
- Domain
- stack
- Primary current
0.5 A
- Voltage
125 V
- Pitch
0.635 mm, 1.27 mm, 2.54 mm
(0.025 in, 0.05 in, 0.1 in)- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 85 °C
(185 °F)
Description

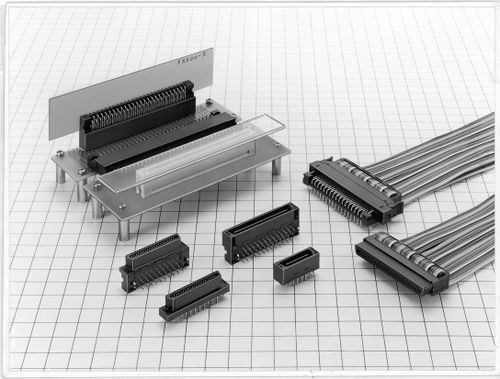

1.27mm Pitch Multi-function Two Piece Connectors
1. Various connection with various product line
2. Easy One-Touch Operation
3. Board to board type
(1) Prevents flux penetration
(2) Stack height 12mm to 16mm
(3) Mis-insertion preventive mechanism
4. Board to cable type
(1) Positive lock with easy operation
(2) Applicable cable/ 28 AWG
5. SMT type
Robust design with metal hold-down
