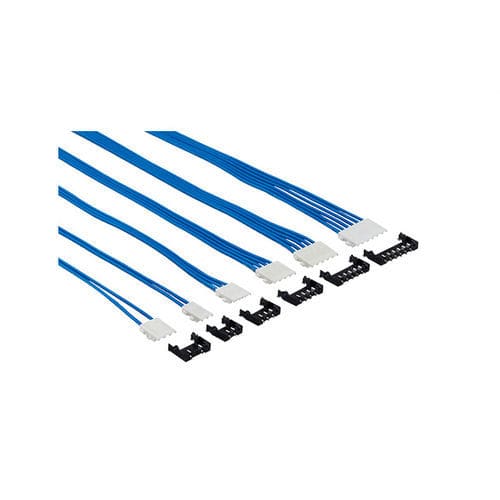

Data connector DF57 SeriesSMTwire-to-boardparallel
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- SMT, wire-to-board
- Shape
- parallel, straight, low-profile
- Connection type
- socket, crimp
- Electrical characteristics
- power
- Material
- gold, tin
- Domain
- for medical applications
- Primary current
1 A, 1.5 A, 2 A, 2.5 A, 3 A
- Voltage
50 V, 100 V
- Pitch
1.2 mm, 2.4 mm
(0.047 in, 0.094 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -35 °C
(-31 °F)
Description
Low Profile “Swing-Lock” Wire-to-Board Connector for Power (UL, C-UL Standard Compliant)
1. Reinforced swing lock design
2. Header lock improves plug retention
3. Highly reliable contact design
4. Insertion guide keys prevent misalignment
5. Solder wicking prevention
6. Case disengagement prevention
7. Cost effective
