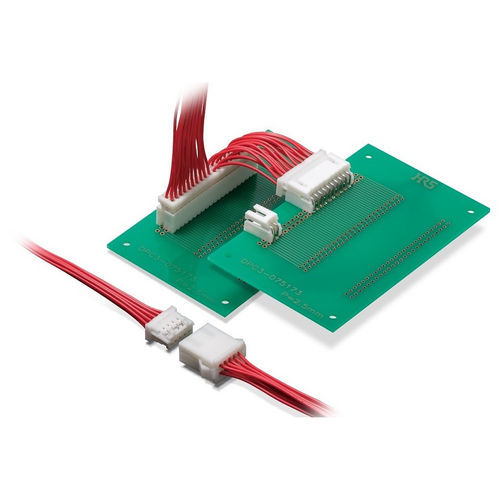

Data connector DF1E Series
wire-to-wirewire-to-boardstraight

Data connector - DF1E Series - Hirose Electric Europe B.V. - wire-to-wire / wire-to-board / straight
Data connector - DF1E Series - Hirose Electric Europe B.V. - wire-to-wire / wire-to-board / straight
Data connector - DF1E Series - Hirose Electric Europe B.V. - wire-to-wire / wire-to-board / straight - image - 2
Data connector - DF1E Series - Hirose Electric Europe B.V. - wire-to-wire / wire-to-board / straight - image - 3
Add to favorites
Compare this product
Go to the Hirose Electric Europe B.V. website for more information

Characteristics

Type
data
Format
wire-to-wire, wire-to-board
Shape
straight, parallel, right-angle
Connection type
socket, through-hole, locking
Material
gold, tin
Product applications
solder
Other characteristics
in-line
Primary current

3 A

Voltage

250 V

Pitch

2.5 mm
(0.098 in)

Operating temperature

Min.: -35 °C
(-31 °F)

Max.: 85 °C
(185 °F)

Description

2.5mm Pitch Connector for Full Lock and Discrete Wire Connection 1. Full Lock Function Added 2. Increase in Crimping Contact Fixation Force and Semi-insertion Prevention 3. Mold Lance Adopted 4. Mis-insertion Prevention 5. Means to Prevent Solder Crack 6. Correspond to Potting 7. Production Facility Cost Reduction 8. Various Applications 9. Listed by UL, C-UL
