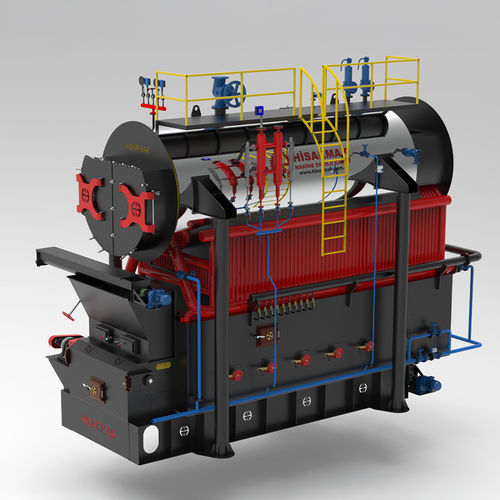

Steam boiler HRGS

coalhorizontalindustrial

Rotary Grate Steam Boiler In this combustion system, from the moment the coal is poured from the service bunker to the grate, it moves towards the furnace with the rotation speed of the grate. It is one of the steam boiler types used in many areas. When it first enters the furnace, the coal first starts to release its moisture under the effect of radiation heat, starts to gasify and release its volatile-flammable hydrocarbons with the increase in temperature and completes the fixed carbon combustion in the following parts of the grate. Combustion of all coal components continues until the end of the grate. Since the combustion is complete, the amount of slag remaining is very small and this is poured into the slag trough and taken out. All the processes from loading the coal into the bunkers, combustion and discharge of the slag are carried out fully automatically with the PLC automation system. In this way, both a highly efficient combustion and a very low emission value are provided. What is Rotary Grate Combustion System? Rotary grate combustion system is a more advanced and automated combustion method compared to conventional grate (fixed grate) systems. The system is based on a continuously rotating grate mechanism inside the boiler. This grate distributes the fuel homogenously and provides a regular air flow in the combustion chamber to increase combustion efficiency. Thus, steam is produced efficiently by ensuring complete combustion of the fuel. Advantages of Rotary Grill System: High Efficiency: The continuously moving grate allows for complete combustion of the fuel. This means higher thermal efficiency and therefore more vapour production.
