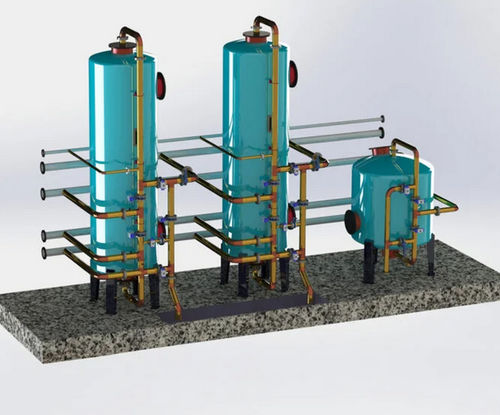

Water softener TWS

Tandem water softening systems are systems used in industrial plants to remove the hardness of water with high hardness value. Water softening systems remove calcium and magnesium in the water in the raw water. These resins, which work with the simple ion exchange principle, capture Ca and Mg ions in the water and replace them with Na ions in the resin structure. Water Softening System Standard Features Epoxy painted carbon steel tank Aquline brand cationic resin Maximum working pressure 6 bar Pneumatic actuated valves (electric actuated valve optional PVC-U Material piping (optional galvanised and stainless piping) Sample taps and manometers at system inlet and outlet PLC based Siemens logo control panel (optional touch screen option Electricity 220V/50 Hz/1 Ph 150 grams of salt consumption is assumed for 1 litre of resin Resin capacity 6000 FR/Litre The supply of dry instrument air required for the operation of pneumatic valves belongs to the customer Recommended compressor air 100 litres/min.-8 bar
