Sand filter HSF

waterstrainerfor water treatment

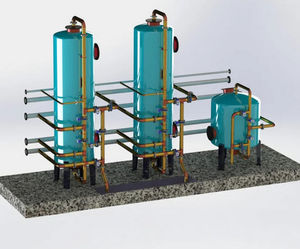

Sand filter system is a system used to remove insoluble particles of various sizes, suspended solids and sediments from water. While the sand filters hold the suspended solids in the water, it also protects the units to be installed after it from the sediment and ensures that they fully fulfil their duties. Water Softening System Standard Features Epoxy painted carbon steel tank Maximum working pressure 6 bar Time-controlled backwash Butterfly valves with pneumatic actuator (Optional Electric Actuator option) F-1215 and F-1615 lower collection structure octopus diffuser F-2015 to F-2815 lower collection structure mushroom diffuser over mirror PVC-U material surface piping (Optional galvanised surface piping option) Sample taps and manometers at system inlet and outlet PLC based Siemens logo control panel (Optional touch screen option) Electricity 220V/50 Hz /1 Ph The supply of dry instrument air required for the operation of pneumatic valves belongs to the customer. The recommended compressor capacity is minimum 100 Lt/min- 8 bar.
