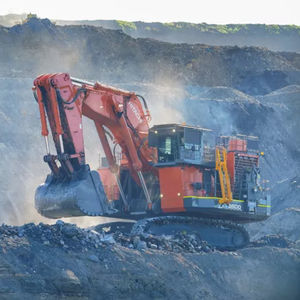

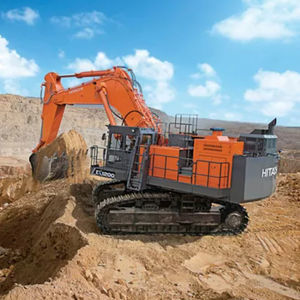

Large excavator ZX530-7
crawlerdieselconstruction

large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
Add to favorites
Compare this product


Characteristics

Size
large
Locomotion
crawler
Engine type
diesel
Applications
construction, mining and quarrying
Operating weight

Min.: 52,700 kg (116,183.6 lb)

Max.: 54,600 kg (120,372.4 lb)

Engine power

296 kW (402.45 hp)

Description

ZX530LCH-7 Engine Rated Power (kW):296 kW (ISO14396) Operating weight (kg):52 700 – 54 600 kg Backhoe Bucket ISO Heaped:2.10 – 2.50 m3 Available in:Europe Expect productivity levels on site to rise with the new ZX530-7 large excavator. It has been designed to deliver guaranteed maximum uptime and reduce your total cost of ownership, which will have a positive impact on your bottom line. About the ZX530-7 Tested rigorously at dedicated facilities in Japan, the durable ZX530-7 large excavator has been built to last and maximise uptime. The ZX530-7 has greater traction and steering force than smaller excavators, which is particularly advantageous for manoeuvrability on sites with inclines, such as quarries Discover the benefits Up to 11% reduced fuel consumption compared to previous models. Enhanced efficiency due to Hitachi’s industry-leading hydraulic system, HIOS V. Higher productivity thanks to improved front speed and increased engine output. Reduced noise and low vibration levels in the cab provide a more comfortable working environment. Engine model Isuzu 6WG1 Engine emissions EU Stage V Engine type 4-cycle water-cooled, common rail direct injection Aspiration Variable geometry turbocharged, intercooled, cooled EGR Aftertreatment DOC, CSF and SCR system No. of cylinders 6 Piston displacement 15.681 L Rated power ISO 14396 296 kW at 1 800 min-1 Maximum torque 2 050 Nm at 1 300 min-1 Main pumps 2 variable displacement axial piston pumps Maximum oil flow 2 x 385 L/min Pilot pump 1 gear pump Maxium oil flow pilot pump 30 L/min

Catalogs

No catalogs are available for this product.

See all of Hitachi Construction Machinery Europe‘s catalogs
