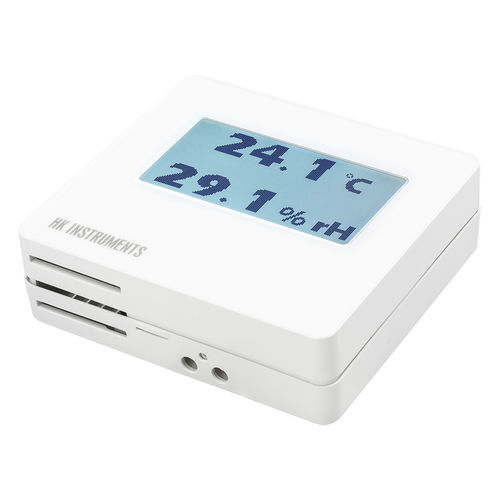

Relative humidity transmitter RHTwall-mountModbus24 Vdc
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Mounting
- wall-mount
- Output
- Modbus
- Supply voltage
- 24 Vdc
- Protection level
- IP20
- Applications
- for building automation
- Working temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Humidity transmitters for building automation systems
RHT relative humidity transmitters are engineered for building automation systems in the HVAC/R industry. The RHT measures relative humidity (rH), and temperature (T). RHT devices are available with large touchscreen display making configuration of the device quick and easy.
RHT devices include:
• Separate field configurable output for each measurement parameter (rH and T)
• Proportional output options including: voltage (0–10 V, 2–10 V) and current (4–20 mA)
• Offset feature enabling field calibration for each measurement parameter (rH, T)
RHT series device options offer:
• 2” x 3” touchscreen display
• Field configurable relay for any of the two parameters
• Modbus configuration
