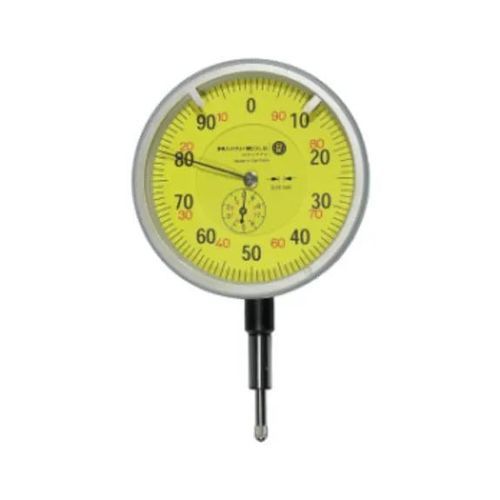

Dial comparator 33085010

Precision dial indicator designed to measure lengths and length differences with high accuracy, especially suitable for applications such as concentricity, flatness and position measurements. Features a large 80 mm dial and a fine 0.001 mm graduation that allows very precise readings.

Short description and uses
This indicator is suitable for dimensional checks in laboratory and industrial environments where careful measurement of deviations and relative positions between parts is required.

Main features

• Dial diameter: 80 mm
• Graduation: 0.001 mm
• Measuring range: 5 mm
• Travel per revolution of the pointer: 0.2 mm
• Measuring pin and spindle: stainless steel
• Outer ring: plastic
• Impact protection: none
• Delivery: supplied in a case
• Calibration group: CE
• Product group: Prod. Gr. 331

Characteristics / technical specifications

• Applications: measurement of lengths and length differences (concentricity, flatness, position measurements)
• Indicator outer diameter: 80 mm
• Scale value: 0.001 mm
• Nominal measuring range: 5 mm
• Travel per revolution of the hand: 0.2 mm
• Materials: measuring pin and spindle in stainless steel; outer ring in plastic
• Impact protection: not provided
• Accessories/delivery: supplied in a case
• Marking/Conformity: Calibration group CE
