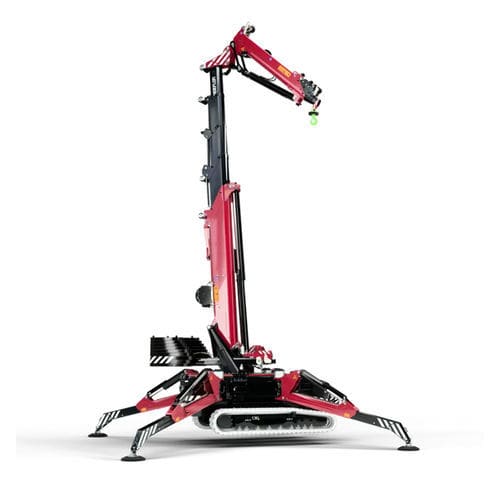

Crawler crane C30e

boomliftingtransport

Description
The Hoeflon C30e is a fully electric pick & carry spider crane engineered for heavy-duty industrial lifting and material relocation in compact or confined environments. It combines remote-control operation, compact transport dimensions and deployable stabilisation for versatile on-site use.

Key features

• Fully electric pick & carry operation with remote-control for precise positioning and safe operation.
• Foldable winch and compact boom geometry for extra-compact transport (suitable for commercial van transport when retracted).
• Hydraulically extendable and adjustable outrigger legs for optimal stabilisation on uneven terrain; legs can compensate height differences.
• Folding legs that can extend beneath obstacles and clear height variances on-site.
• Extendable crawler tracks to increase ground clearance and allow driving while carrying a load; designed to keep a low centre of gravity for stable pick & carry capability.
• Main boom can tilt negatively (up to 5°) to create working space in confined areas.

Applications and benefits

• Industrial lifting: high nominal capacity (9000 kg) and powerful winch for demanding lifts.
• On-site versatility: pick & carry capability enables load relocation without additional handling equipment.
• Flexible positioning: adjustable outriggers and compact transport dimensions simplify access in congested work zones.

Technical specifications

• Capacity: 9000 kg
• Capacity at max. outreach: 380 kg
• Winch capacity: 6400 kg
• Lifting height incl. jib: 22 m
• Max. outreach incl. jib: 20 m
• Jib length: 7.5 m
• Boom outreach: 20 m (without options 12 m)
• Boom angle: 85°
• Incline angle: 20°
• Slewing range: Endless
• Dimensions L x W x H: 3.85 m x 1.2 m x 2.0 m
• Dimensions incl. options: 4.17 m x 1.17 m x 2.3 m
• Total weight incl. options: 8700 kg
• Total weight excl. options: 5600 kg
• Ground pressure: 0.79 kg/cm2
• Charging options: 400 V, 230 V / 380 V
