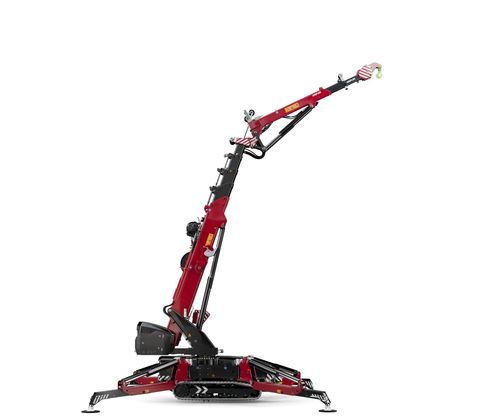

Fixed mini crane Hoeflon C10e Gen 3

boomindoor/outdoorlifting

Overview
Compact mini crane designed for confined workspaces. Nominal capacity 4,000 kg with a maximum lifting height of 22 m. Fast deployment, modular jib system and advanced outrigger technology for versatile on-site use.

Key features

• Rapid deployment and transport-ready setup
• Gen 3 RCL (Rated Capacity Limiter) for continuous real-time load insight
• Operator feedback and telemetry for precise control
• Advanced hydraulically extendable and infinitely adjustable outriggers (0°–90°)
• Pick & carry capability up to 750 kg

Smart technology
The Gen 3 RCL continuously calculates available capacity based on current configuration, attachments, ballast and ground conditions. Dynamic real-time adjustments enable optimal utilization while maintaining safety margins.

Automatic unfolding and leveling
Outriggers deploy and level automatically to provide a stable base and reduce setup time on site.

Outrigger flexibility
Hydraulically extendable outriggers with infinite angle adjustment allow optimal positioning around obstacles and on uneven terrain. Folding legs enable stabilization over raised edges and irregular surfaces.

Counterweight & capacity adjustments
Hydraulically extendable counterweight increases lifting capacity; the machine automatically recognizes counterweight position for correct load calculations. Counterweight and jib are removable to reduce transport weight (own weight can be reduced to 3,720 kg when removed).

Jib & attachments
Modular jib system with quick coupler and automatic attachment recognition lets operators swap jibs and accessories quickly; the crane recalculates capacity for the mounted configuration.

Performance
High horizontal lifting performance: up to 500 kg at end of boom and up to 209 kg at end of jib. Max outreach incl. jib: 18.5 m; excl. jib: 13.3 m; lifting height incl. jib: 22 m.

Applications & operator benefits
Suitable for precision indoor and outdoor lifting tasks such as installation works, natural stone handling, glass and panel placement, timber prefab assembly and other projects requiring compact high-capacity lifting with fast setup and precise control.

Technical specifications

• Capacity: 4000 kg
• Capacity at max. outreach (end of jib): 209 kg
• Winch capacity: 4000 kg
• Lifting height incl. jib: 22 m
• Max. outreach incl. jib: 18.5 m
• Max. outreach excl. jib: 13.3 m
• Jib length: 5 m
• Boom angle: -6 to 85°
• Incline angle (machine): 20°
• Slewing range: Endless
• Dimensions excl. options: 3.97 m x 0.81 m x 2.00 m
• Dimensions incl. options: 4.19 m x 0.81 m x 2.00 m
• Total weight incl. options: 5075 kg
• Total weight excl. options: 3720 kg
• Ground pressure: 0.69 kg/cm²
• Charging options: 230 V
• Pick & carry capacity: up to 750 kg
• Horizontal lifting at end of boom: 500 kg
