Robotic tool changer

The Multitool Hoeflon is a multifunction attachment for Hoeflon compact cranes that expands lifting and positioning capabilities for beams, pipes, glass panels and pallets. It provides wide rotation and tilt ranges to enable precise placement in restricted or elevated locations.

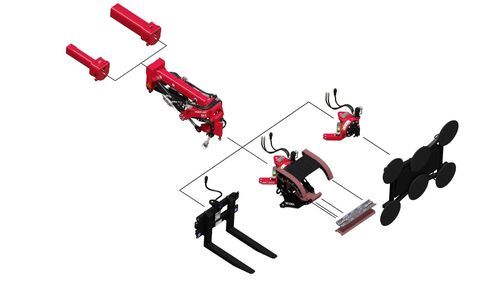

Attachments / available tools

• Multiclaw — clamping jaws for handling beams and pipes; removable clamping plates increase clamping surface or allow external clamping.
• Multifork — pallet fork frame for lifting and positioning pallets; suited for placing pallets at height or in hard-to-reach areas.
• Multivac — glass-suction configuration (glass suction lifter ordered separately) mounted via adapter; offers the same freedom of movement as the beam clamp.
• Additional items: pallet fork frame, clamping jaws, glass suction lifter and adapters (Adapter C6, Adapter C10).

Compatibility

• Designed for Hoeflon compact cranes: C6e, C10e and C30e (fitted via supplied adapters).

Key features

• Unlimited / continuous rotation for Multiclaw and Multivac providing full freedom of movement.
• Tilt capability: 200°.
• Swivel range: -45° to +50°.
• Fork length (Multifork): 800 mm.
• Lifting eyes capacity (Multiclaw / Multivac): 2000 kg.

Technical specifications

• Adapter C10: 28 kg
• Adapter C6: 24 kg
• Pipe diameter for beam clamp: ≤ 500 mm
• Base frame weight (incl. pallet fork): 152 kg (base unit)
• Weight pallet fork frame (attachment): 64 kg
• Weight clamping jaws (attachment): 188 kg
• Weight Multivac (glass lifter assembly): 85–110 kg
• Weight Multitool + glass suction lifter: 198 kg (152 + 46)
• Weight Multitool + clamping jaws: 340 kg (152 + 188)
• Weight Multitool + pallet fork frame: 216 kg (152 + 64)
• Maximum lifting capacity beam clamp: 1250 kg
• Maximum lifting capacity Multivac: 1000 kg
• Maximum lifting capacity fork frame: 2000 kg
• Jib: 75 kg
• Tilt angle: 200°
• Fork length: 800 mm
• Tilt section + slewing section weight: 77 kg
• Rotation range (Multiclaw / Multivac): Unlimited
• Swivel angle: -45° to +50°
