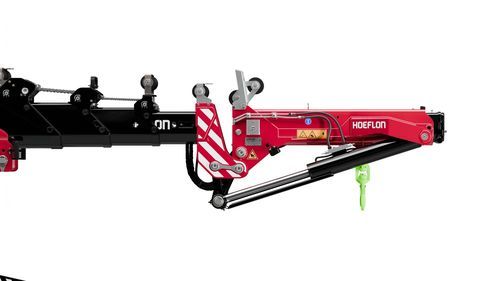

Lifting attachment system Jib 5

The Hoeflon Jib 5 is an attachment jib designed to extend the lifting reach of Hoeflon compact cranes while enabling high-capacity lifting tasks. It provides adjustable reach and is suitable for precision lifts at greater heights or farther from the crane base.

Extended jib
Fully extended, the Jib 5 delivers maximum outreach — ideal for lifting operations that require precision at increased height or distance from the crane position.

Accessories
Compatible accessories increase flexibility, simplify installation and enhance operational safety. Accessories are quick to mount and allow adaptation to specific lifting scenarios.

Technical specifications

• Capacity fixed hook: 8000 kg
• Capacity lifting adapter: 5000 kg
• Capacity winch: 5000 kg
• Own weight: 500 kg
• Reach / tilt range: +15° to -90°
• Length retracted: 1750 mm
• Length extended: 2850 mm
