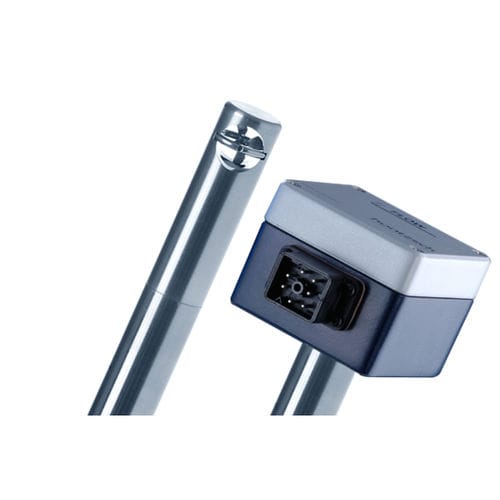

Vane flow sensor ZS25/25-250GFE/100/p10/ZG4

for liquidsairinsertion

Cylindrical vane wheel sensor / insertion probe with probe diameter 25 mm and integrated transducer UFA (optional). Probe material: stainless steel. Working temperature range up to +550 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and flow rate V/t [m³/h, l/min] in clean gases and liquids, briefly also in particle-laden mediums. Signal evaluation with integrated or separate transducer UFA, flowtherm NT.2, flowtherm Ex and system units. Measuring range 0.4 ... 120 m/s in air/gases 0.04 ... 10 m/s in water/liquids Pressure resistance up to 10 bar / 1 MPa overpressure Media temperature -40 ... +550 °C Media gases / liquids Displayed indicators flow velocity, flow rate, volume IP protection type IP65 (connection housing) Type of protection with UFA: ATEX category 3G and 3D (zone 2 and 22), (optional) without UFA: ATEX category 2G (zone 1), (optional) Sensor output analog output 4-20 mA limit value quantity pulse RS232 interface (only with UFA)
