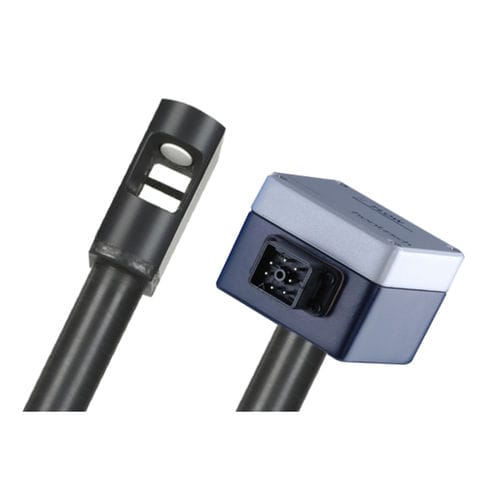

Vortex flow sensor VA40 ... ZG10 series

for liquidscompactinsertion

COMPACT UNIT, FOR CORROSIVE AND CAUSTIC GASES, VARIABLE INSERTION DEPTH Vortex probe VA40 with sensor head diagonal dimension 40 mm and transducer UVA integrated in the connection housing. Probe material: PVDF conductive. Working temperature range up to +100 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and actual flow rate V/t [m³/h] in clean as well as condensate and particle-laden gases. Signal evaluation with integrated transducer UVA. MEASURING RANGE 0.5 ... 40 m/s PRESSURE RESISTANCE up to 3 bar / 300 kPa overpressure MEDIA TEMPERATURE -40 / -20 / 0 ... +100 °C MEDIA gases DISPLAYED INDICATORS flow velocity, flow rate, volume IP PROTECTION TYPE IP65 (connection housing) TYPE OF PROTECTION ATEX category 3G and 3D (zone 2 and 22) (optional) SENSOR OUTPUT analog output 4-20 mA limit value quantity pulse RS232 interface
