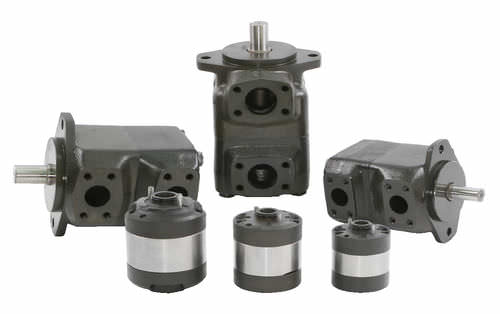

Rotary vane hydraulic motor 25M, 35M, 45M Vane Motor
high-pressure

rotary vane hydraulic motor
rotary vane hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Other characteristics
high-pressure
Pressure

34 bar, 155 bar, 172 bar
(493 psi, 2,248 psi, 2,495 psi)

Rotational speed

2,400 rpm, 3,000 rpm, 3,600 rpm, 4,000 rpm
(15,079.64 rad.min-1, 18,849.56 rad.min-1, 22,619.47 rad.min-1, 25,132.74 rad.min-1)

Torque

Max.: 20.9 Nm
(15.42 ft.lb)

Min.: 3.3 Nm
(2.43 ft.lb)

Displacement

Max.: 193 cm³
(6.53 US fl oz)

Min.: 29 cm³
(0.98 US fl oz)

Description

Range of the speed and pressure is from 43.9 to 193.2 cm3/r with 172 bar of maximum pressure and 9 torques. The inner chambers are equally and diametrically opposed which results to balanced radial loads. Therefore, motors are also hydraulically balanced that helps to reduce wear and heat from friction. Motors are bi-rotational and provide 90% efficiency due to dual pressure plates.

Catalogs

No catalogs are available for this product.

See all of HOF HYDRAULIC‘s catalogs
