Foodstuff hose

for abrasive productsfor dustfor powders

Overview

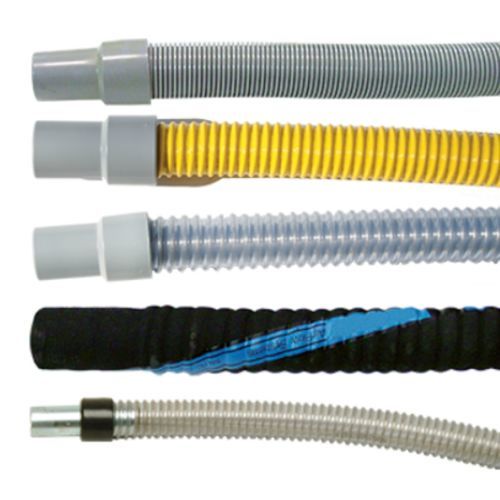

Hoffman & Lamson offers a wide range of commercial vacuum hoses including crush proof plastic, flexible plastic, heavy-duty rubber, and heavy-duty corrugated plastic. Each hose type provides specific properties for distinct industrial and commercial applications. See the downloadable brochure for part numbers and selection guidance.

Heavy-Duty Corrugated Plastic
Heavy Duty Corrugated PVC hoses are available in Heavy Duty Corrugated PVC and HC Style Clear PVC. These clear, corrugated hoses suit food‑grade and dry bulk pneumatic conveying of powders, pellets and granules. The convoluted exterior increases flexibility while the smooth bore reduces material buildup, wear and pressure loss.

Heavy-Duty Rubber Hoses
Heavy Duty Rubber hoses are offered in three configurations:

• Smooth bore
• Corrugated exterior
• RS Style rubber

Thick‑wall, wire‑reinforced constructions with EPDM compounds provide abrasion resistance for pneumatic conveying of abrasive materials. Steel wire helix and fabric reinforcement ensure flexibility and structural strength.

Crush Proof Plastic
Crush Proof Plastic hoses are lightweight, flexible and crush‑resistant, made from ethylene‑vinyl acetate copolymer. They are intended for housekeeping and conveying light, non‑abrasive materials. These hoses are non‑conductive and are not recommended where static dissipation or grounding is required; a grounded version is not available.

Flexible Plastic
Flexible Plastic hoses are available as Flexible Plastic and F‑Style PVC (heavy duty option). They are wire‑reinforced and designed for repeated flexing and housekeeping applications, using high‑strength reinforcing yarns and a coated spring‑steel wire helix between layers of EVA or PVC in larger sizes.

Applications & Use

• Housekeeping and light‑duty conveying of non‑abrasive materials
• Pneumatic conveying systems for dry powders, pellets and granular materials
• Food‑grade clear material handling (HC Style Clear PVC)
• Conveying abrasive materials (heavy‑duty rubber options)

Documentation
Downloadable industrial hose and tool brochure available for specific part numbers and selection data.

Technical characteristics / Caractéristiques techniques

• Materials: Heavy Duty Corrugated PVC, HC Style Clear PVC, EPDM rubber compounds, ethylene‑vinyl acetate copolymer, polyvinyl chloride (PVC)
• Construction options: smooth bore, corrugated cover, wire‑reinforced with spring‑steel helix, fabric reinforcement
• Available styles: Crush Proof Plastic, Flexible Plastic (including F‑Style PVC), Heavy‑Duty Rubber (Smooth, Corrugated Exterior, RS Style), Heavy‑Duty Corrugated PVC and HC Style Clear PVC
• Applications: pneumatic conveying, housekeeping, food‑grade handling, abrasive material handling
• Notable properties: smooth bore to minimize buildup and pressure loss; convoluted cover for flexibility; crush‑proof plastic is non‑conductive and not available grounded
• Recommended where abrasion resistance, flexibility or clear material visibility is required
