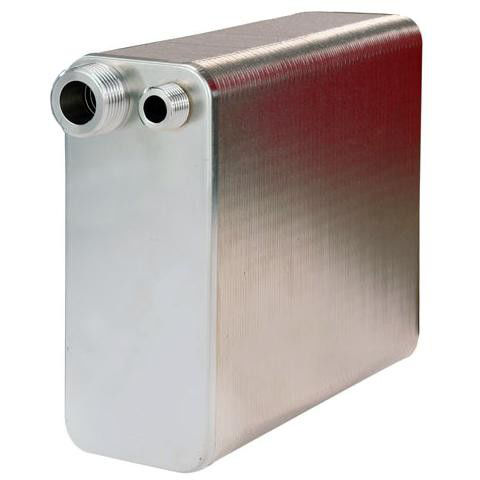

Brazed plate heat exchanger HFQ10

liquid/liquidgas/liquidcopper

Recommended Applications: HFQ10 brazed plate heat exchanger covers refrigeration capacity ranging from 1 to 30KW. It can be used as a condenser/ evaporator, can also be used as a subcooler/ superheater. It is especially suitable for small home central air conditioners. Design Priciple: HFM compact plate pack of brazed plate heat exchanger is vacuum brazed together with copper or nickel. Compared with gasketed plate heat exchanger, brazed plate heat exchanger can endure high temprature of 225℃, pressure up to 45Mpa. HFM brazed plate heat exchanger consists of a number of 0.4mm thin plates which transfer heat high efficiently. In the one pass solution design, medium flow rate can be up to 8m3/h. All 4 connections are on the front side. This means easy pipe and service work. The plate pack, assembled with two end plates and connections, is vacuum brazed at extremely high temperatures providing a permanently sealed heat exchanger. The final result is a strong and compact plate heat exchanger with extremely high heat transmissions.The high heat transmission comes from the main pattern which is designed to create a turbulent flow.
