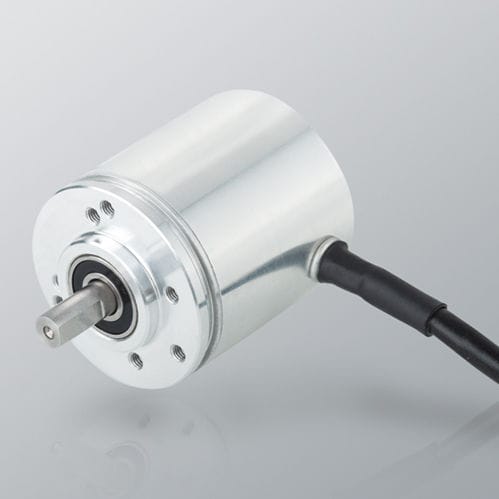

Absolute draw-wire encoder E36 CM BiSS seriesmagnetic24-bitmulti-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Absolute encoder resolution
- 24-bit
- Construction
- multi-turn, single-turn
- Protection level
- IP64
- Other characteristics
- miniature
- Housing diameter
37 mm
(1.46 in)- Shaft diameter
6 mm
(0.24 in)- Rotational speed
Max.: 12,000 rpm
(75,398 rad.min-1)Min.: 6,000 rpm
(37,699 rad.min-1)- Linear encoder speed
6 m/s
(19.69 ft/s)- Output frequency
Max.: 2,000 Hz
Min.: 10 Hz
- Process temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
MINIATURE SOLID SHAFT ABSOLUTE MULTITURN ENCODER BISS INTERFACE
Singleturn resolution up to 13 bits
Magnetic technology
Protection class IP64 according to DIN EN 60529
Connection by cable (other cable length available)
