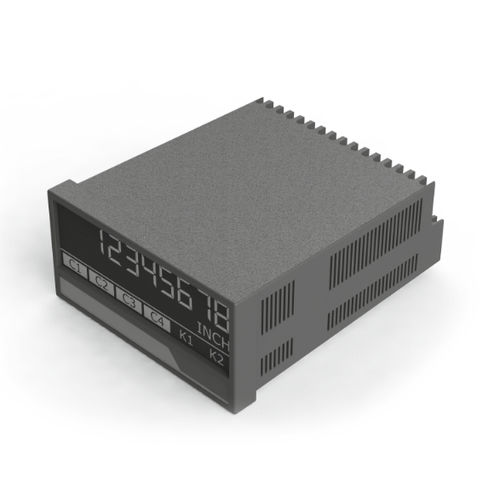

Universal indicator AX 350 series

ACpowertime

Option AC: Power supply 115...230 VAC Option AO: 16 bit analogue output, 4 control outputs, serial RS232 interface Option SO: 4 control outputs, serial RS232 interface Option RL: 2 relay outputs Product Features: Operating modes for visualization of input 1, input 2 or combinations of (IN1+IN2, IN2-IN2, IN1xIN2, IN1:IN2) Two universal 16 bit analog inputs for -10 ... +10 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA High accuracy reference output 10 V for potentiometers > 1 kOhm Bright and high-contrast display with event-dependent color variations Emulation of a 7-segment display inclusively icons and units Intuitive and easy parameterization by plain text and touchscreen 24 V auxiliary output for encoder supply Totalisator for each input Linearization with 24 control points for each input Numerous features, e. g. tara, averaging filter, sampling time for each input 3.78 x 1.89 inch norm panel housing and IP65 protection Available Options: AX350: Basic unit with 2 analog inputs (16 Bit), 3 control inputs Option AC: Power supply 115...230 VAC Option AO: 16 bit analog output, 4 control outputs, serial RS232 interface Option CO: 4 control outputs, serial RS232 interface Option RL: 2 relay outputs
