Indexing work-holding tombstone HSH series
clampingfour-sidedductile iron

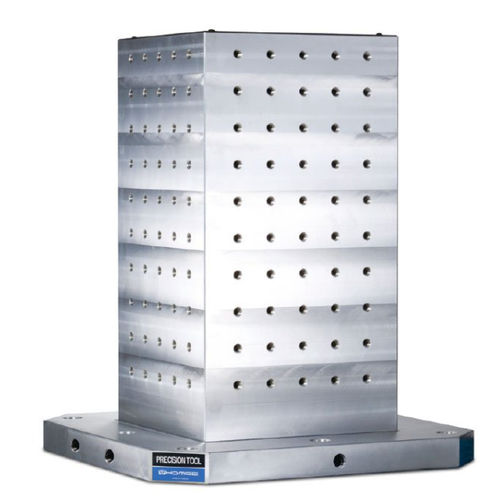

Indexing work-holding tombstone - HSH series - HOMGE MACHINERY IND. CO., LTD. - clamping / four-sided / ductile iron
Indexing work-holding tombstone - HSH series - HOMGE MACHINERY IND. CO., LTD. - clamping / four-sided / ductile iron
Add to favorites
Compare this product
Go to the HOMGE MACHINERY IND. CO., LTD. website for more information

Characteristics

Options
indexing work-holding, clamping, four-sided, ductile iron

Description

Features
  • Heat treated (normalized) construction
  • Designed for horizontal machining centers
  • Square, 4-faced design for mounting clamping devices on four sides


Advantages
  • Enables multi-sided machining to improve machine utilization
  • Compatible with standardized jig components for fast fixture assembly
  • Offered in FCD50 (ductile iron) or Aluminum A356 to match strength and weight requirements


Specifications
  • Model series: HSH (examples range from HSH-300300-0500-12 to HSH-10001000-1250-16)
  • Materials: FCD 50 (ductile iron) or Aluminum A356
  • Mounting: through-holes typically Ø12 or Ø16 with M12 or M16 threads; number of MTP holes varies by model (commonly 4 or 8)
  • Units: mm; weights provided per model for FCD50 and A356 where applicable
  • Dimensional parameters include A, B, C, D, E, F, G and through-hole pattern—refer to model table for exact values


Technical characteristics
  • Heat treatment: normalized
  • Application: square tombstone for 4-sided clamping on horizontal machining centers
  • Quick assembly using rationalized jig components
  • Typical through-hole and thread options: Ø12 / M12 or Ø16 / M16
