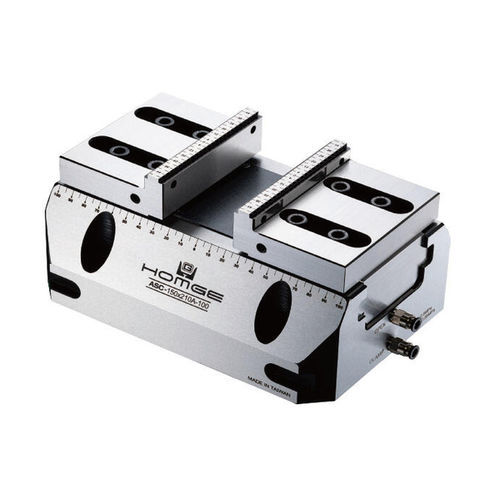

5-axis machine tool vise ASC-150x210A-100

for grinding machinesfor milling machinespneumatic

Overview
Pneumatic self-centering 5-axis jaws designed for automated clamping in CNC machining centers. Quick installation, standard air interface, repeatability ±0.015 mm, spring safety mechanism maintains clamping on air loss, alloy steel body and hardened jaws, and reversible quick-change jaws for high flexibility.

Advantages

• One-day installation to increase machine utilization and ensure consistent delivery quality.
• One-touch changeover — button/signal activated; clamps or releases in ≈1.5 s; no wrench required, minimal downtime.
• Guaranteed precision — repeatability ±0.015 mm and stable clamping force ensure uniform part quality and fewer reworks.
• Plug-and-play automation — standard pneumatic interface; supports multiple jaws on a single CNC and easy integration with robots for rapid scaling.
• Fail-safe clamping — spring mechanism keeps the part secured if air supply fails, protecting personnel and equipment.
• Durable construction — alloy steel body and hardened jaws preserve original accuracy under heavy cycles, reducing maintenance costs.
• Flexible workholding — reversible, quick-change jaws adapt quickly to varied parts and allow future expansions.

Specifications (table)
Model | A | B | C | C1 | E | F | H | J | J1 | K | K1 | K2 | L | O | Q | Q1 | Weight (kg)
ASC-150x210A-100 | 112 | 77 | 59 | 64 | M6 | 210 | 150 | 2.5 | 9.5 | 32 | 35 | 23 | 100 | 80 | 125 | 125 | 17.5

Accessories

• Standard accessories: 4 positioning screws.
• Optional accessories: connection plate.

Features / Technical specifications

• Body material: S50C.
• Jaw hardness: HRC 48-50.
• Units: mm.
• Repeatability: ±0.015 mm.
• Clamping/release time: ≈1.5 s (signal/button activated).
• Safety mechanism: spring maintains clamping when air is absent.
• Sample model: ASC-150x210A-100.
• Weight (sample model): 17.5 kg.
