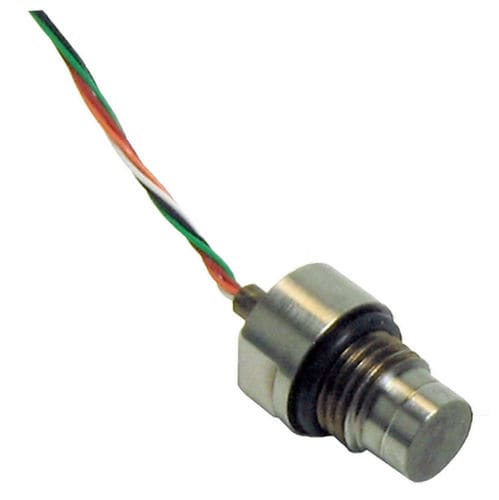

Relative pressure sensor Model S
membraneanalogflush diaphragm

relative pressure sensor
relative pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
membrane
Output
analog
Mounting
flush diaphragm
Material
stainless steel
Other characteristics
CE, miniature
Pressure range

Max.: 15,000 psi

Min.: 100 psi

Precision

1 %

Process temperature

Max.: 250 °F
(121 °C)

Min.: -20 °F
(-29 °C)

Description

Honeywell's full line of subminiature pressure transducers accurately measure pressure ranges from 100 psi to 15000 psi. These gauge-only, subminiature pressure transducers have a high natural frequency and utilize a flush diaphragm that is manufactured from 17-4 PH stainless steel. Temperature compensation is accomplished by using temperature-sensitive components located inside the transducers. These transducers have a small electrical, zero balance circuit board that is in the lead wire (approximately 1 in x 0.087 in thick). This balance board does not have to be in the same temperature as the transducers. All transducers have four (4) active bonded strain gauges arranged in a Wheatstone-bridge configuration. Features Flush mount design No internal dead volume High frequency mV/V output CE approved
