Multi-point gas detection for enhanced safety and improved performance
Features & Benefits
Detects virtually any gas, chemical or odor in an industrial process
Up to 40 measuring points can be sequentially detected
Simplified touchscreen operation
Analysis method: Continuous scan FT-IR (Fourier Transform Infrared) analyzer
Gas cell path: 5.0 m path length
Scanning rate: ≤ 15 sec per point

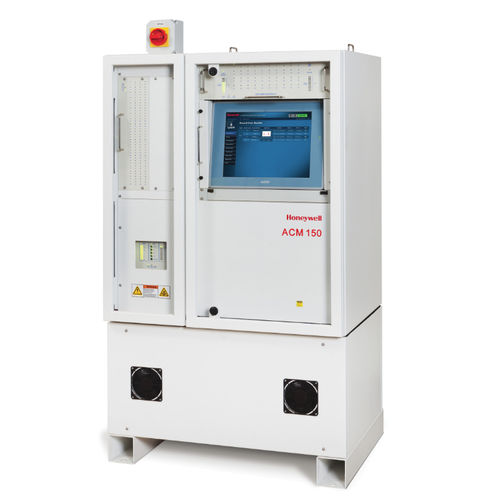

ACM 150 brings you the latest FT-IR technology within a centralized gas monitoring system to offer you many advantages:
Up to 40 measuring points can be centrally located to one device, such as process tools, gas and chemical storage units, gas cabinets, distribution boxes, process tools, emission measurement and ambient air monitoring.
Up to 15 gases can be detected per measuring point, lowering your cost per gas per point monitoring.
Self-diagnostic programming detects faults and critical alarms, eliminating many maintenance calls.
Communications options meet your unique site requirements (Lonworks®, ControlNet™, Modbus®, Profibus®)
Improved gas detection performance
The ACM 150 matches your company’s increased productivity demands with a newly designed FT-IR bench that provides better LDL (Lower Detectable Limit) performance for many gases along with reduced maintenance and service requirements over the life of the instrument.
