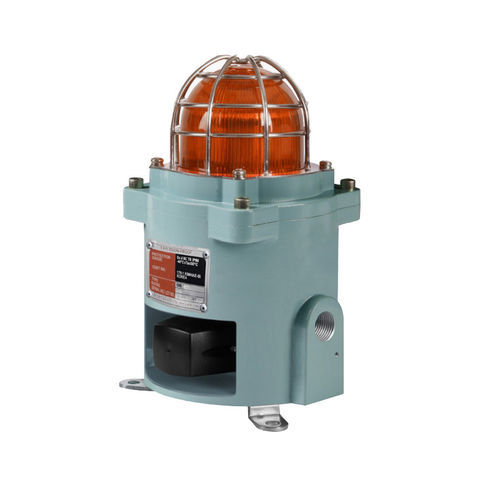

Alarm sounder with signal light QNES-SUSelectronicflameproofATEX
Add to favorites
Compare this product
Characteristics
- Type
- with signal light
- Technology
- electronic
- Protection level
- explosion-proof, IP66, ATEX, flameproof
- Mounting
- wall-mounted
- Certifications
- IECEx, KCs
- Other characteristics
- compact, stainless steel
- Sound level
110 dB
Description
Product Details
Model: QNES-SUS
Size:
Material:
Features
Specification
Characteristics / Technical Specifications
Model: QNES-SUS
Size:
Material:
Features
- Φ92mm Explosion Proof LED Signal/ Warning Light and Electric Sounder Combination
- Flame proof LED signal light that features steady/flashing, strobe, and simulated revolving light functions in one unit
- LED Steady/Flashing: Repeat operation of LED light on/off
- LED Strobe: Short LED steady/flashing. Creates a xenon flashing effect by providing maximum electric current
- LED Simulated Revolving Flashing: LED flashes steadily around the cylindrical LED filaments which makes a simulated revolving effect
Specification
- Explosion proof, multifunctional, and compact LED signal light and electric sounder combination designed for use in explosive gas environments with Ex d IIC rating
- Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
- Superior durability with aluminum housing (QNES)
- STS housing provides superior durability and corrosion resistance (QNES-SUS)
- Fully enclosed structure with protection rating of IP66
- Housing standard color: Red, MUNSELL No. 7.5BG 7/2
- Cable entry: 1/2'' NPT
- Sound volume: Max. 110dB at 1m
- Flashing rate (LF type): 60-80 flashes/min.
- Strobe rate (LS type): 70-80 flashes/min.
- Simulated revolving rate (LR type): 120-140RPM
- Materials: Lens-Tempered glass, Inner lens-PC, Bracket-STS304, Protection cage-STS316, Housing-Al(QNES), STS(QNES-SUS)
- Certificates: ATEX, IECEx, KCs
- Protection rating: ATEX - II2G Ex db IIC T5/T6 Gb, IP66; IECEx - Ex db IIC T5/T6 Gb, IP66; KCs - Ex d IIC T6/T5, IP66
- Ambient operating temperature: -40°C ≤ Tamb ≤ +60°C (T5); -40°C ≤ Tamb ≤ +45°C (T6)
Characteristics / Technical Specifications
- Model: QNES-SUS
- Explosion proof LED signal light and electric sounder combination
- Steady, flashing, strobe, and simulated revolving light functions
- Max. sound volume: 110dB at 1m
- Protection rating: IP66
- Certificates: ATEX, IECEx, KCs
- Material: Aluminum (QNES), Stainless Steel (QNES-SUS), Tempered glass lens, PC inner lens, STS304 bracket, STS316 protection cage
- Operating temperature: -40°C to +60°C (T5), -40°C to +45°C (T6)
