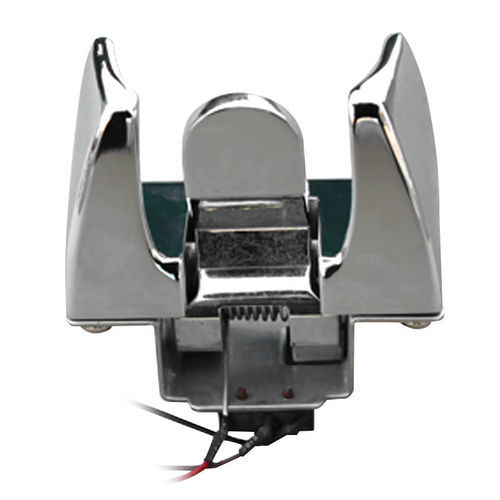

Telephone hook H2stainless steelstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- stainless steel
- Product applications
- for telephones
- Material
- stainless steel
Description
Basic information
Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.
Standard
GB/15279-94 Automatic telephone technology conditions
YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods
Conditions of using
Main structure parts
Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 v, insulation resistance:50M)
Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests, shall meet the following requirements: (AC1600V/50Hz/1min, Leakage current :0.5Ma). And there is no flashover or breakdown phenomenon.
Caractéristiques / Spécifications techniques
- Model: Kntech H2
- Size:
- Material: Stainless steel
Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.
Standard
GB/15279-94 Automatic telephone technology conditions
YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods
Conditions of using
- Service Environment: -25~55℃
- Relative humidity: 10%~95%
- Atmospheric pressure: 96~108KPa
Main structure parts
- a. 600 # hanging for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
- b. Hang tongue for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
- c. Selects the high quality of universal switch, on resistance :0.1, cable length L: 150
Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 v, insulation resistance:50M)
Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests, shall meet the following requirements: (AC1600V/50Hz/1min, Leakage current :0.5Ma). And there is no flashover or breakdown phenomenon.
Caractéristiques / Spécifications techniques
- Model: Kntech H2
- Material: Stainless steel with copper, nickel, chrome plating
- Intended use: Outdoor public telephones
- Standards: GB/15279-94; YDN109-1998 (chapter 4)
- Service temperature: -25~55℃
- Relative humidity: 10%~95%
- Atmospheric pressure: 96~108KPa
- Main parts: zinc aluminum casting (600 #) with polishing chromium plating; hang tongue zinc aluminum casting with polishing chromium plating; high-quality universal switch (on resistance: 0.1, cable length L: 150)
- Insulation resistance: tested with TH2681A (DC 250 V, 50M)
- Withstand voltage: tested with ET2670A (AC1600V/50Hz/1min, leakage current 0.5mA), no flashover or breakdown
