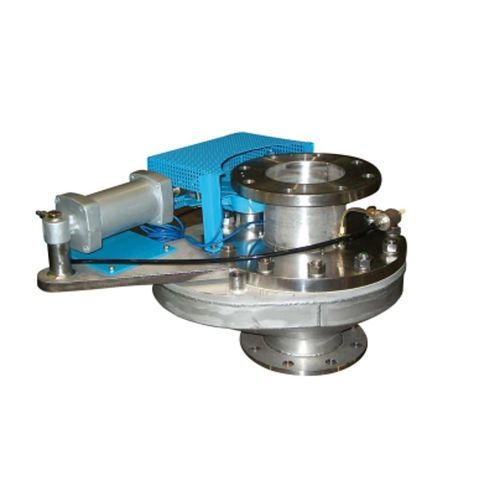

Locking valve SSP series
slidepneumaticcarbon steel

locking valve
locking valve
locking valve
Add to favorites
Compare this product


Characteristics

Type
slide
Operation
pneumatic
Body
carbon steel
Applications
vacuum, for granulates
Other characteristics
locking, solids
DN

Max.: 500 mm
(19.685 in)

Min.: 150 mm
(5.906 in)

Pressure

Max.: 6 bar
(87 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 240 °C
(464 °F)

Min.: -20 °C
(-4 °F)

Description

Pressure tight locking valve for pressure-/vacuum-hoppers, pipelines or reactors, free passage when open, shutting disc is not leaving the housing when open/close position. Pressure-tight seal for pressure/vacuum vessels or reactors. For powdery and granulate-forming solids; for coarse and lumpy recycling products; also for wearing and poorly flowing mediums due to a free passage without interfering obstacles (like valve discs). Variant: directly bolted onto the vessel using a flange; pressure (e.g. pneumatic sender vessel). • Laterally pivoted slide plate in the housing • Without any slide passage on the outside; as a result, dust cannot escape into the environment • When the slide is open, the passage is free, which prevents the product from bridging • Less wear since the gasket and the slide plate do not come in contact with the product flow when the slide is open • TÜV-certified and approved as per pressure equipment directive 97/23/EC Normal position: Slide closed, pneumatic sealing not pressed (i.e. the solenoid valve (MVH 3/2) is in the relieve A-R position, limit switch at the “Close” position is actuated. − Opening process: The release signal to open the slide is sent only when the pressure switch (PS) indicates “Pressure <2 bar”. The solenoid valve (MVH 5/2) actuates the cylinder, the slide opens, the limit switch at the “OPEN” position is actuated.
