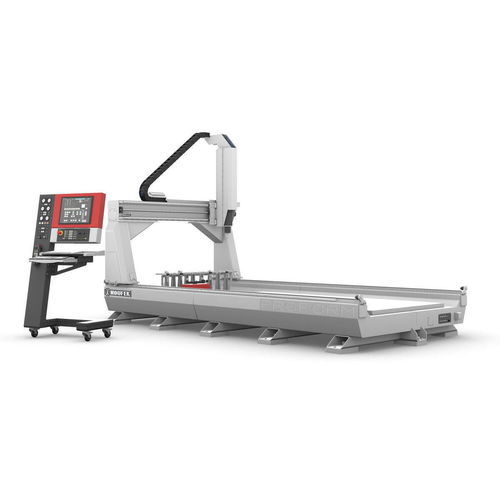

3-axis CNC machining center PROFORM X3
verticalfor woodwith automatic tool changer

3-axis CNC machining center - PROFORM X3 - Houfek a.s. - vertical / for wood / with automatic tool changer

Add to favorites

Compare this product

Characteristics

Number of axes

3-axis

Spindle orientation

vertical

Machined material

for wood

Other characteristics

with automatic tool changer

X travel

2,000 mm
(78.74 in)

Y travel

1,400 mm, 1,500 mm
(55.12 in, 59.06 in)

Z travel

300 mm
(11.81 in)

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Power

12 kW
(16.32 hp)

Description

Overview
The CNC PROFORM X3 is a three-axis machining centre equipped with a liquid-cooled spindle and automatic tool change. The machine is primarily designed for the production of complex parts and wooden or polystyrene models for metal foundries and similar applications.

Versions and configuration
This machine is available in one version only, with the possibility of individual configuration using optional accessories.

Technical specifications

Axes: Three-axis machining centre
Spindle: Liquid-cooled spindle
Tool change: Automatic tool change
Primary applications: Production of complex parts and wooden or polystyrene models for metal foundries
Availability: One version, configurable with optional accessories
