5-axis CNC machining center PROFORM X5
verticalfor aluminumfor wood

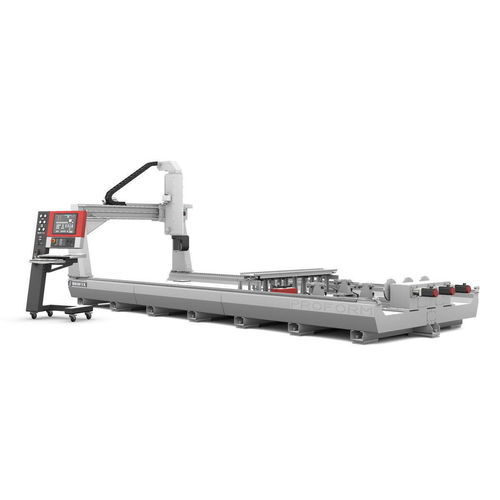

5-axis CNC machining center - PROFORM X5 - Houfek a.s. - vertical / for aluminum / for wood

Add to favorites

Compare this product

Go to the Houfek a.s. website for more information

Characteristics

Number of axes

5-axis

Spindle orientation

vertical

Machined material

for aluminum, for composites, for wood

Spindle mount

HSK F63

Other characteristics

with automatic tool changer

X travel

2,000 mm
(78.74 in)

Y travel

800 mm, 1,000 mm, 1,400 mm, 1,500 mm
(31.5 in, 39.37 in, 55.12 in, 59.06 in)

Z travel

300 mm
(11.81 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

12 kW
(16.32 hp)

Description

Product overview
The PROFORM X5 is a five-axis CNC machining center with a dual-axis head, liquid-cooled spindle and automatic tool changer. It is engineered for machining complex-shaped parts and for producing wooden or polystyrene patterns used by metal foundries.

Configuration

Available in a single standard version
Can be customized with optional accessories to meet specific production requirements

Technical specifications

Five-axis machining center
Dual-axis head for enhanced contouring
Liquid-cooled spindle for thermal stability
Automatic tool changer for uninterrupted machining
Optimized for manufacturing complex parts and wooden or polystyrene patterns for foundries
