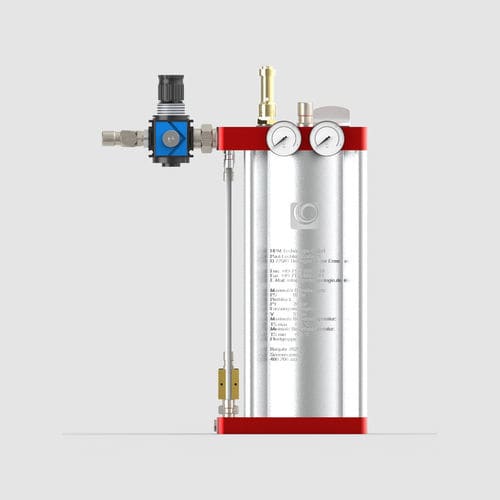

Oil lubrication unit LSJ BASIC

minimal quantityelectricautomatic

Basic can be that much power. Discover the world of internal lubrication at an attractive entry-level price with the LSJ Basic. Developed for countless applications and areas of use where only one parameter is required. Simple operation: once optimally set, your process will function reliably and reduce your production costs in the long term. High-quality components and a robust aluminum housing combined with precise workmanship. A system designed for eternity. GENERAL INFORMATION Basic device for internal lubrication and the perfect entry into minimum quantity lubrication technology. Cooling channel cross-section at the tool outlet from 0.6mm2 to max. 50mm2 Spindle size up to max. HSK 63 Optimal for all applications and processes where only one parameter is required Manual setting of the parameters via the pressure regulators Adjustment of aerosol saturation via 1 nozzle Switching on and off via customer's machine Visual fill level monitoring Container capacity 3 liters (max. filling quantity 2 liters) ACCESSORIES AND OPTIONS Stainless steel stand Stainless steel wall bracket Level sensor with 3 contacts Automatic filling 20 liters via customer PLC or HPM Ecmos 2.0 HPM Ecmos 2.0 with plug-in power supply 24 V Nozzles for external lubrication (if internal lubrication is not possible) 2-way ball valve NW 8 Extendable with high pressure module for doubling the hall pressure
