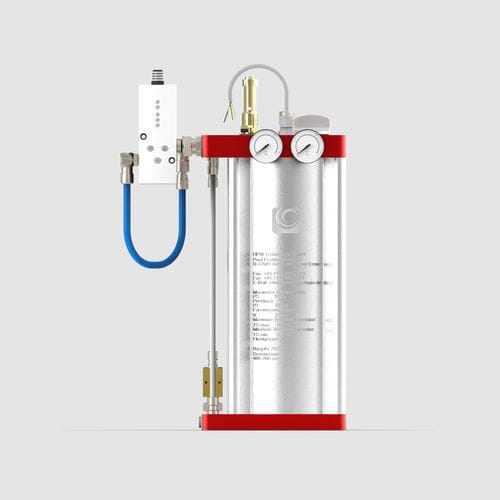

Oil lubrication unit LSJ BASIC PRO

minimal quantityelectric

The form is Basic, the functions are Pro. The powerful LSJ Basic Pro is for those who don't let limitations stop them from taking your process to the next level. Designed for professionals, this system supports the full range of applications and gets the most out of your applications. Ease of use. Simpler monitoring. Simple Electric. The LSJ Basic Pro makes it easy for you - because it simply can! Electronic components, stepless control and a robust aluminum housing guarantee durability and reliability. Designed to simply work. GENERAL INFORMATION Basic unit for internal lubrication and the perfect entry into minimum quantity lubrication technology. Cooling channel cross-section at the tool outlet from 0.6 mm2 to max. 30 mm2 Spindle size up to max. HSK 63 Optimal for all standard applications and processes Stepless electrical adjustment of parameters via 0 - 10 V Parameters possible without oil Switching on and off via customer's machine Visual + electrical level monitoring Tank capacity 3 liters (max. filling quantity 2 liters) ACCESSORIES AND OPTIONS Stainless steel stand Wall bracket made of stainless steel Automatic filling 20 liters via customer SPS nozzles for external lubrication (if internal lubrication is not possible) 2-way ball valve NW 8 Extendable with high pressure module for doubling the hall pressure
