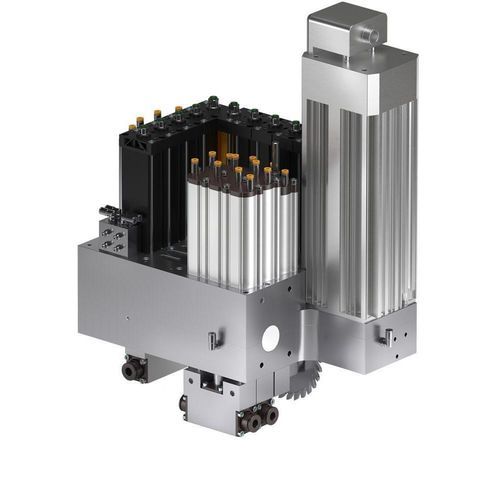

Multi-spindle boring head BHZ

high-speedfor metalworking

Product overview
BHZ boring heads designed and manufactured by HSD Mechatronics. Modular multi-spindle line configurable in vertical (V), horizontal (H) and blade (B) spindle arrangements. Suitable for drilling and machining on multiple materials; product pages include a Wood tag and note applicability to metals and general industrial materials.

Applications

• Industrial metal machining and drilling
• Woodworking and panel drilling (tagged as Wood)
• General-purpose multi-spindle boring operations across varied materials

Accessories

• Solenoid valve pack in 10/12/16/18/22/26/28 positions (BHC line / BHZ line)

Technical sheet
Configuration (V = vertical spindles / H = horizontal / B = blade): 4÷20 / 0÷9 / 0÷2
Vertical spindles: max speed [RPM]: 6000
Vertical spindles: stroke [mm]: 60 / 75
Spindles: pitch [mm]: 32
Vertical spindles: connection: Ø10
Horizontal spindles: max speed [RPM]: 6000
Horizontal spindles: stroke [mm]: 75
Blade: max speed [RPM]: 7500
Blade: stroke [mm]: 60
Liquid cooling: No
Lubrication: Manual, automatic option available
Electrovalve remote unit: Optional
Weight [kg]: 60

Characteristics / technical specifications

• Configuration (V / H / B): 4÷20 / 0÷9 / 0÷2
• Vertical spindles max speed: 6000 RPM
• Vertical spindles stroke: 60 mm or 75 mm
• Spindles pitch: 32 mm
• Vertical spindles connection: Ø10
• Horizontal spindles max speed: 6000 RPM
• Horizontal spindles stroke: 75 mm
• Blade max speed: 7500 RPM
• Blade stroke: 60 mm
• Liquid cooling: No
• Lubrication: Manual, automatic option available
• Electrovalve remote unit: Optional
• Weight: 60 kg
