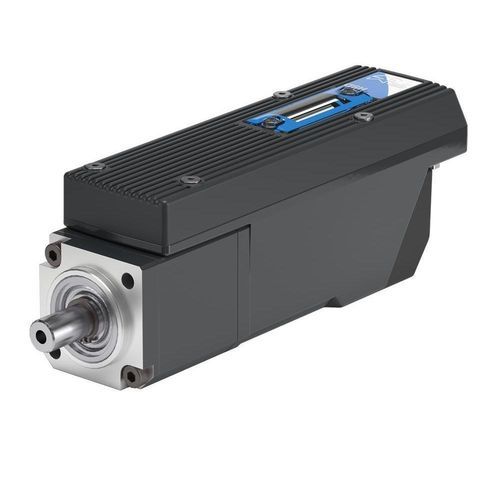

24 V servomotor SM137

compactindustrialCANopen

Overview
The SM137 is a compact smart motor designed and manufactured by HSD for precision machining and drive integration in industrial applications. The series maintains a constant 40 x 60 mm mechanical envelope while offering multiple output speed and torque variants and integrated fieldbus interfaces for automation systems.

Applicable materials

• Glass
• Wood
• Stone
• Composite

Technical data (variants)
Model | SM137 - 100W | SM137 - 100W | SM137 - 100W
Body dimension [mm] | □ 40 x 60 | □ 40 x 60 | □ 40 x 60
Max output speed [rpm] | 800 | 625 | 200
Nominal output torque S1 [Nm] | 1.5 | 2 | 6.2
Power S1 [W] | 100 | 100 | 100
Rated voltage [V] | 24 | 24 | 24
Logic voltage [V] | 24 | 24 | 24
Gearbox ratio | 1:6.25 | 1:8 | 1:25
Fieldbus | EtherCAT - CANopen - RS485 | EtherCAT - CANopen - RS485 | EtherCAT - CANopen - RS485
Brake | No | No | No
Weight [kg] | 1 | 1 | 1

Key technical features

• Model: SM137
• Power S1: 100 W
• Compact body: 40 x 60 mm (square)
• Available max speeds: 800 / 625 / 200 rpm (depending on variant)
• Nominal output torque S1 by variant: 1.5 / 2 / 6.2 Nm
• Rated and logic voltage: 24 V
• Gearbox ratios available: 1:6.25, 1:8, 1:25
• Fieldbus interfaces: EtherCAT, CANopen, RS485 for integration with PLCs and motion controllers
• No integrated brake (external braking can be specified)
• Approx. weight: 1 kg
