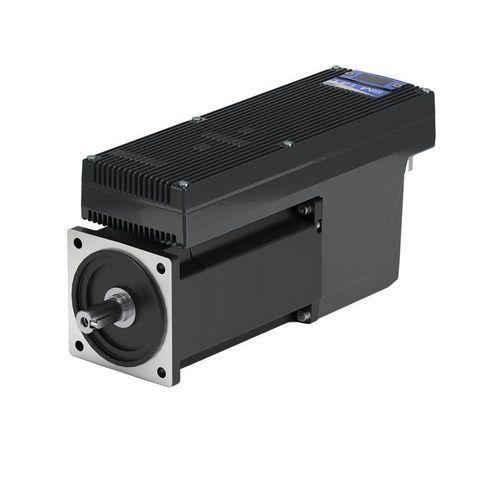

24 V servomotor SM141

with brakecompactindustrial

Overview
HSD-designed SM141 smart motors for industrial machining of metals and other materials. Available in two power variants to suit compact machining equipment where fieldbus integration and optional braking are required.

Compatible materials

• Glass
• Wood
• Stone
• Composite

Main features

• Smart motor for CNC and automated machining operations
• Two power variants: SM141 - 350W and SM141 - 450W
• Fieldbus support: EtherCAT and CANopen
• Optional brake
• Compact body dimensions and low weight for easy integration
• Max output speed: 5000 rpm

Technical specifications
Model | SM141 - 350W | SM141 - 450W
Body dimension [mm] | □ 80 x 125 | □ 80 x 125
Max Output Speed [rpm] | 5000 | 5000
Nominal Output Torque S1 [Nm] | 1.11 | 1.43
Power S1 | 350 | 450
Rated voltage [V] | 230AC | 230AC
Logic voltage [V] | 24 | 24
Gearbox RATIO | 1 | 1
Fieldbus | EtherCAT - CANopen | EtherCAT - CANopen
Brake | Optional | Optional
Weight [kg] | 4.5 | 4.5

Typical applications

• Industrial machining of hard and soft materials
• Cutting, shaping and finishing of glass, wood, stone and composites
• Integration in CNC spindles and automated machining units

Technical characteristics

• Model variants: SM141 - 350W and SM141 - 450W
• Body dimension: □ 80 x 125 mm
• Maximum output speed: 5000 rpm
• Nominal output torque (S1): 1.11 Nm (350W), 1.43 Nm (450W)
• Power S1 values listed as 350 and 450 (units per datasheet)
• Rated voltage: 230 AC; Logic voltage: 24 V
• Gearbox ratio: 1; Weight: 4.5 kg
• Fieldbus interfaces: EtherCAT and CANopen; Brake available as option
