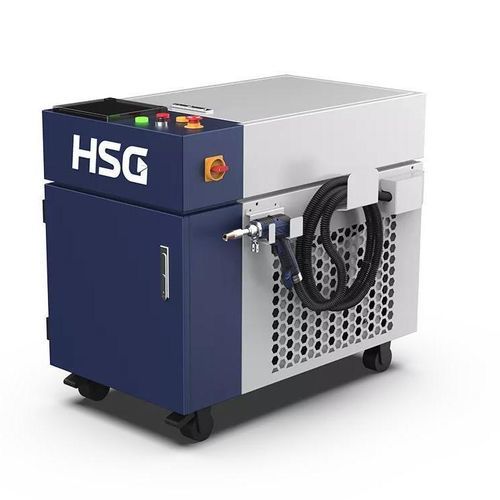

Fiber laser welding machine FMW

manualintegratedcutting

Product overview
Handheld fiber laser welding machine FMW. Available power range: 1500W–3000W. Designed for efficient manual welding of metal components with a lightweight ergonomic handheld head and integrated cooling and control systems.

Swing (WOBBLE) welding technology
The WOBBLE swing mode adjusts beam tracing to broaden effective weld width and increase tolerance to small spot size and minor misalignment, improving bead formation and joint quality.

One-pass workpiece welding
Simple to operate after basic training; the flexible handheld head reaches multiple positions so complete welds can be made in a single pass, improving productivity and reducing rework.

Dual-temperature and control chiller
Integrated industrial chiller with dual-temperature zones and dual control maintains stable thermal conditions for core optical components, ensuring consistent laser performance and reliable heat dissipation.

Handheld welding laser head

• Ergonomic, lightweight design for reduced operator fatigue and improved maneuverability.
• Quick lens replacement and enhanced protection: pull-type lens swap, dual-lens protection and early-warning diagnostics.
• Multi-function head: welding, cutting and cleaning capabilities in a single tool.

Safety and feed systems

• Safe grounding and electrical protection to reduce risk from leakage and protect personnel and instrumentation.
• DC dual-driven wire feeder for stable and consistent wire feed during automated or semi-automated welding.

Performance and maintenance
Continuous-output fiber laser provides high electro-optical efficiency and stable power. Design minimizes consumables and maintenance requirements to reduce operating costs and downtime.

Applications
Suitable for on-site and workshop welding of thin to medium-thickness metal assemblies in industrial fabrication, automotive repair, maintenance and light manufacturing contexts.

Technical specifications

• Model: FMW
• Laser power: 1500W–3000W
• Overall dimensions (L×W×H): 624×806×970 mm (reference for 1–2 kW version)
