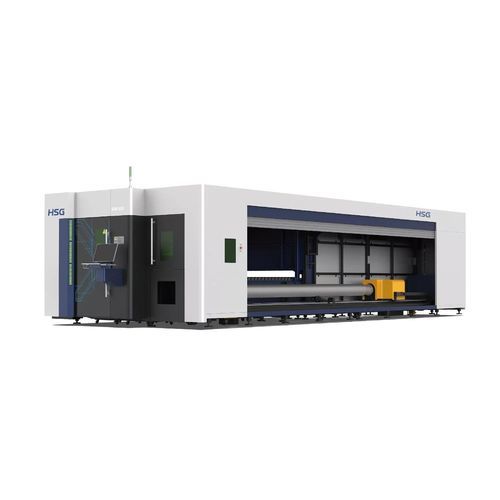

Laser cutting machine G3015XE

for metalsheet metaltube

Overview
GXE — Dual exchange platform sheet & tube laser cutting machine. Available laser power: 1.5–6 kW.

Capable of cutting both sheet and tube
Integrated design: a single machine combines sheet and tube cutting functions, reducing equipment procurement costs. The dual-exchange platform is designed for efficient, high-volume production.

Precision, protection and performance in one
Automatic focus adjustment according to laser beam mode for high-quality cutting results. Equipped with servo autofocus, automatic cooling and obstacle avoidance. Three integrated protective lenses and an anti-pollution design ensure long-term stability.

Dual exchange platforms
Enables cutting operation and synchronized loading/unloading. Before the switching motor, the rear workbench loading/unloading space is sufficient; the sheet-metal cover is protected from damage.

Dual automatic pneumatic chucks
Automatic centering chucks with pneumatic clamping delivering high clamping force. Special support frame prevents tube deformation.

Features / technical specifications

• Model: G3015XE
• Laser power: 1.5–6 kW
• Sheet cutting area (length × width): 3048 mm × 1524 mm
• Maximum acceleration: 0.5 g
• Tube cutting capacity: round tube φ20–210 mm; square tube □20 × 20 – □150 × 150 mm
• Max. loading weight: 800 kg (sheet) / 100 kg (tube)
