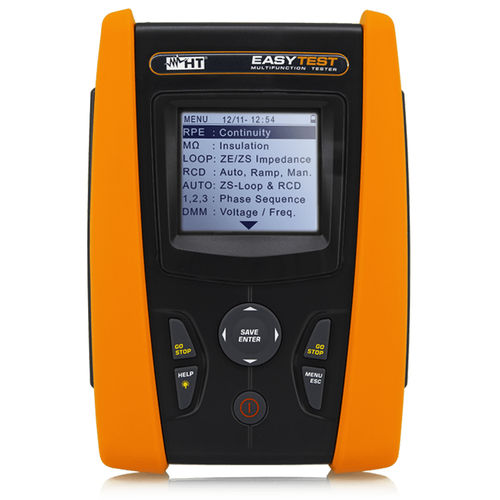

RCD tester EASYTEST

electrical safetycontinuityinsulation resistance

EASYTEST carries out tests on electric systems in compliance with IEC/EN 61557-1 and therefore measurements of continuity of the protection cable, insulation resistance (with calculation of PI and DAR), overall earth resistance, RCDs type A and AC tripping time and current, line / fault impedance with calculation of prospective short circuit / fault current, phase sequence and conformity. The instrument is provided with the innovative AUTO function: by selecting this function and only setting the value of RCD current, EASYTEST carries out tests of overall earth resistance, RCD tripping time and insulation resistance in a sequence. At the end of the test, the device shows all results with the indication of compliance or non-compliance with the standards with simple symbols OK or NOT OK. The internal memory allows saving the measures and subsequently transfer them onto the PC through the optical/USB connection. Functions AUTO test (Non-trip ground resistance, RCD, Insulation) in sequence - Insulation with test voltages 100, 250, 500, 1000VDC - Measurement of dielectric absorption ratio D.A.R. - Measurement of polarization index P.I. - Continuity of protective conductors with 200mA - Tripping time of type A, AC General and Selective RCDs - Non-trip earth resistance - Loop/Line impedance, Phase-Phase, Phase-Neutral, Phase-PE - Contact voltage - Phase sequence - Help on line on the display - Internal memory for measured data saving - Optical/USB serial port for PC connection - Protection rating - Power supply - Protection category - CAT IV 300V Weight in grams (batteries included) - 1200 Size (LxWxH) (mm) - 222x162x57
