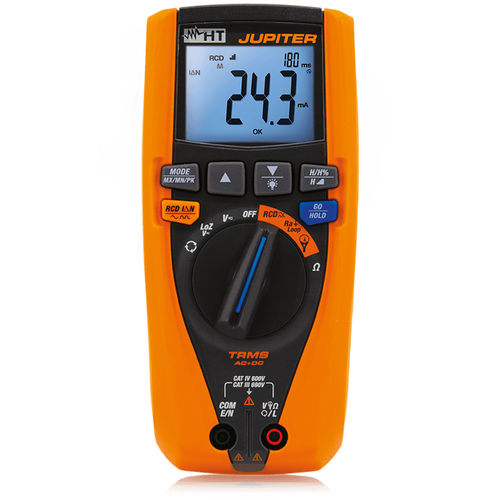

Digital multimeter JUPITER

portablecat IIIcat IV

HT revolutionizes the portable instrument market by introducing the new JUPITER. The first multimeter who incorporates the functions available only in standard electrical safety testers and professional High-end multimeters. Functions Measuring counts - 6000 AC TRMS current by means of external flexible transducer F3000U - DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer - TRMS - AC/DC voltage - 690V / AC+DC LoZ Input - AC/DC current - AC+DC with external clamp transducer Resistance and continuity test with buzzer - Frequency - Tripping time and current of F-type RCDs - - RCD trip current measurement - RCD A/AC 30mA Leakage current (with optional accessory HT96U) - Non-trip earth resistance - Voltage and current harmonics up to the 25th and THD% - Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current - Electric motor starting current (INRUSH) - Auto x1/2, x1, x2, x5, 0°, 180° - Phase sequence - Out come OK/NOT OK - According to IEC60364-6 Backlit LCD display - MAX/MIN/HOLD - Guidelines CEI 64-8 612.6.3 CEI 64-8 612.9 IEC/EN61010-1 IEC/EN61010-2-030 IEC/EN61010-2-033 IEC/EN61326-1 IEC/EN61557-3 IEC/EN61557-6 IEC/EN61557-7 UNE20460
