Gas hose J 2-1 PU
PUtransportsuction

Gas hose - J 2-1 PU - HUANYU HOSE CO., LTD. - PU / transport / suction
Gas hose - J 2-1 PU - HUANYU HOSE CO., LTD. - PU / transport / suction
Gas hose - J 2-1 PU - HUANYU HOSE CO., LTD. - PU / transport / suction - image - 2
Add to favorites
Compare this product

Characteristics

Use
for gas
Material
PU
Applications
transport, suction
Inner diameter

Max.: 150 mm
(5.906 in)

Min.: 25 mm
(0.984 in)

Outer diameter

Max.: 162 mm
(6.378 in)

Min.: 31 mm
(1.22 in)

Pressure

Max.: 1 bar
(14.504 psi)

Min.: 0.09 bar
(1.305 psi)

Temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

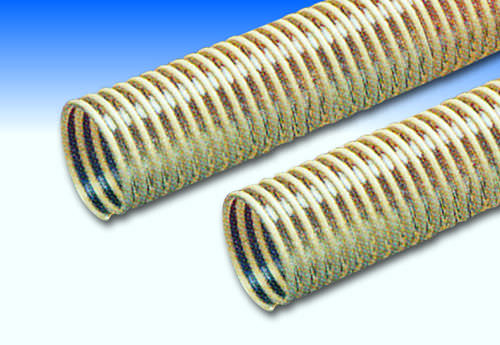

The J 2-1 PU hose is used in transporting coarse-grained solids and gaseous and liquid substances as well. It is characterized by its smooth internal walls and its is installed with a hard plastic spiral. Delivering a good flow rate, this hose possesses chaffing and chemical proof attributes and can be extremely pliable as well. It can operate in a minimum working temperature of -20°C and a maximum of +70°C. For shorter operational periods, this hose can withstand a maximum temperature of +80°C. Other key features of this hose include a tiny bending radius and lightweight construction. It possesses an internal diameter flow that ranges from 25 to 150 mm.
