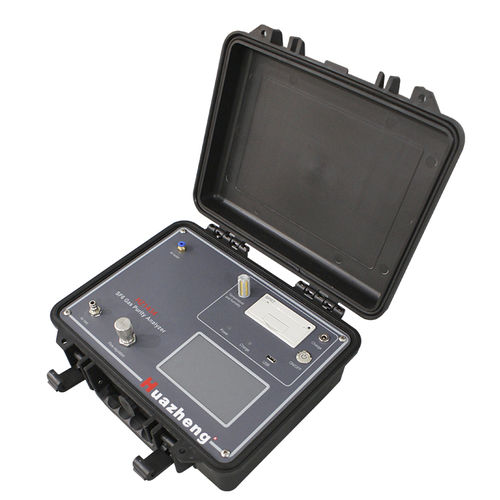

SF6 analyzer HZ1434

for electrical networkspurityportable

• Measurement range: 0–100% (SF6 percentage) • Accuracy: ±0.1% (within 90%–100% range) • Resolution: 0.01% • Response time: ≤15s (90%) • Sampling flow: 0.5–0.8 L/min with electronic flowmeter • Data storage: up to 100 groups, USB2.0 output • Power supply: built-in 4400mAh lithium battery, 10h continuous work The Huazheng HZ1434 SF6 Gas Purity Analyzer is an advanced portable instrument designed for accurate and reliable on-site measurement of SF6 gas purity. It adopts a high-precision micro thermal conductivity sensor with temperature compensation, ensuring stable performance even under varying environmental conditions. The 5-inch color LCD touchscreen provides intuitive operation and real-time curve tracking, making purity changes easy to monitor at a glance. The analyzer is ideal for routine field testing of SF6 in gas-insulated switchgear, circuit breakers, transformers, and bottled SF6 cylinders. Equipped with a built-in electronic mass flow sensor and pressure-stabilizing system, the HZ1434 delivers precise sampling and rapid response. The instrument can store up to 100 groups of data, which can be easily exported via a standard USB interface for further analysis and record keeping. Combining accuracy, portability, and user-friendly design, the Huazheng SF6 Purity Analyzer offers an efficient solution for power utilities, maintenance teams, and laboratories requiring reliable gas quality assessment.
