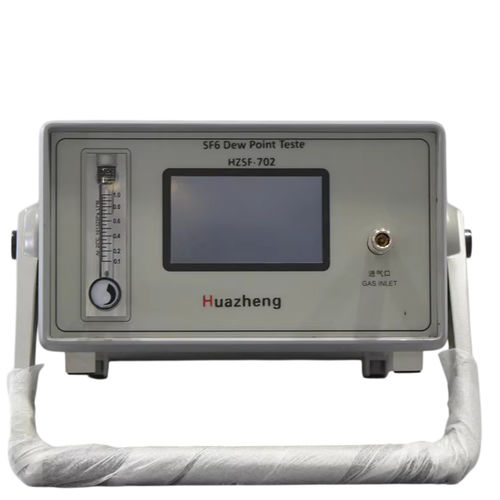

SF6 analyzer HZSF-702

electricindustrialdew-point

SF6 gas is widely used as an insulating and arc-quenching medium in high-voltage electrical equipment, such as circuit breakers and gas-insulated switchgear (GIS). The SF6 Dew Point Tester is essential for monitoring the moisture content in these systems, ensuring their safe and reliable operation. Additionally, the tester is used in laboratories and research institutions to analyze the quality of SF6 gas and develop new applications. In summary, the SF6 Dew Point Tester is a vital tool for ensuring the quality and safety of SF6 gas in various applications. Its accurate measurement, wide range, fast testing, and portability make it indispensable in the power industry and other fields where SF6 gas is used. Measurement Methods 1.Connect SF6 Devices .Connect the threaded end of the measuring pipe to the switch joint and tighten it with a wrench. .Close the needle valve at the other end of the measuring pipe. .Insert one end of the quick connector on the measuring pipe into the air inlet of the instrument. .Insert one end of the exhaust pipe into the exhaust port on the back of the instrument and place the other end into a trench or window. .Finally, connect the switch connector to the SF6 electrical equipment measurement interface and tighten with a wrench. 2.Initialization Turn on the power switch of the instrument. The instrument will enter the initialization self-calibration process. After calibration, it will automatically enter the measurement page.
