4-20 mA pressure transmitter 519
6VAC5VDCflush diaphragm

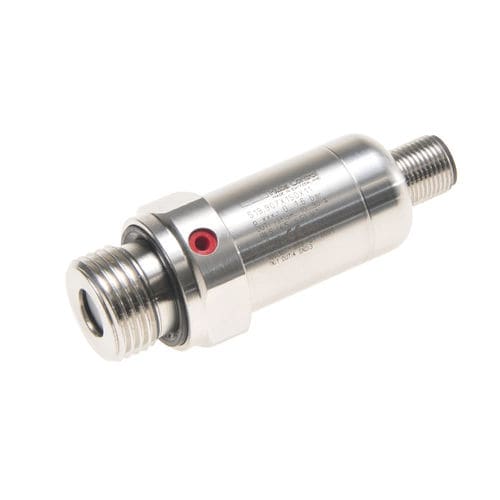

4-20 mA pressure transmitter - 519 - HUBA CONTROL - 6VAC / 5VDC / flush diaphragm
4-20 mA pressure transmitter - 519 - HUBA CONTROL - 6VAC / 5VDC / flush diaphragm
Add to favorites
Compare this product

Characteristics

Output
4-20 mA
Supply voltage
6VAC, 5VDC
Mounting
flush diaphragm
Fluid
for gas, for liquids
Protection level
rugged
Applications
process
Other characteristics
compact, precision
Pressure range

Max.: 60 bar
(870.23 psi)

Min.: 0 bar
(0 psi)

Precision

0.3 %

Long-term stability

0.25 %

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The pressure transmitter type 519 has a compact and robust design and a very high measurement accuracy. The flush diaphragm offers the use in the process technique of pasty media. Beside various pressure- and electrical connectors there are pressure ranges from 400 mbar to 60 bar full scale available. This sensor utilises a ceramic technology, developed by Huba Control and for the last 20 years, in millions of applications. Medium Liquids, pasty media and gases Electrical connection Connector DIN EN 175301-803-A or C, M12x1 Pressure connection Outside thread * High accuracy * Available with integrated temperature measurement * Compact, rugged construction * Flush diaphragm * Pressure ranges from 400 mbar full scale available
