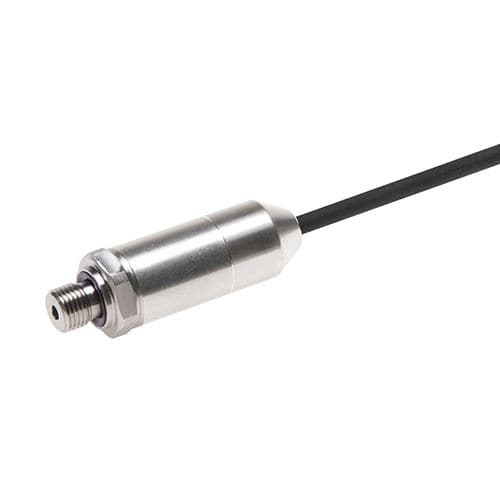

Relative pressure transmitter 512 4-20 mA5VDC6VDC
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Output
- 4-20 mA
- Supply voltage
- 5VDC, 6VDC
- Mounting
- threaded
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- rugged, EMC, IP69K
- Applications
- for hydraulic applications
- Other characteristics
- compact
- Pressure range
Max.: 1,000 bar
(14,503.77 psi)Min.: 0 bar
(0 psi)- Precision
0.5 %
- Long-term stability
0.3 %
- Process temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
The pressure transmitter type 512 with cable connection meets the highest demands of industrial and mobil hydraulic applications. This sensor is available with protection standard IP 69K. The standard pressure orifice prevents damage due to pressure peaks.
The compact and rugged design meets the requirement of shock- and vibration stability according Kfz-norm ISO 16750. The pressure transmitter type 512 guarantees highest EMC stability according to various Kfz regulations with test level up to 100V/m.
The measuring cell is based upon the Huba Control developed thick film technology on stainless steel and is fully hermetically welded.
Rugged PUR cable with IP 69K
Welded without sealing parts, no elastomer seals
Negligible temperature influence on accuracy
Excellent EMC capacity
