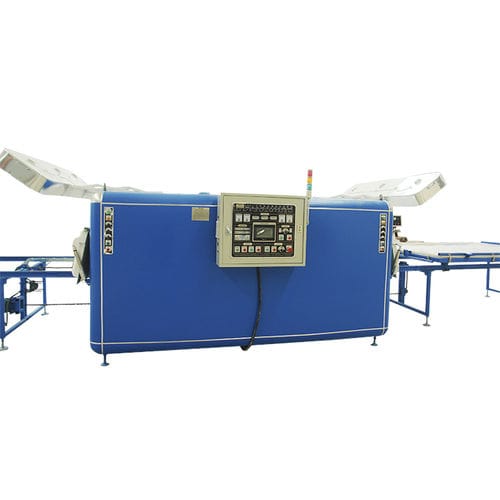

Tile forming machine DWSJ-6010

for ceramicsPLC-controlledautomatic

Microcrystal Glass Ceramic Tile Forming Machine Type:DWSJ-6010 Machine parameters Voltage: 380V Power: 24.4KW Max working size: 1900mm×2500mm Processing thickness: 2-30mm Machine size: 3300mm×2500mm×2000mm Weight: 2250kg Machine introduction Machine characteristics 1. The furnace body uses the steel structure, the furnace inside uses the high-grade heat preservation material combination to become the double protection. 2. The control system is an intelligent temperature controller, can be programmed to complete the whole process automatically and manually. 3. Use direct-connected vacuum pump, tear-resistant silicone plate that is durable in use, good air tightness, and can automatically keep the vacuum after power down. 4. The machine use finned heating pipe,cooling uniformity, long life, using brand circulation fan to circulate air heating , heating speed , temperature equalizing, high output; the entire heat cycles in the box,There are air vents and suction vents in the equipment, so that each vacuum bag on the upper and lower surface heat evenly, there is no dead heat, high yield. 5. Use Programmable intelligent control device, plc touch-screen control system, automatic start and stop, No staff is required to watch, and it will automatically prompt when break down. 6. Double working positions from left to right recycle, simple operation. 7. When the device is powered off ,the machine can automatically keep the vacuum, no need staff to watch, and can continue operating when power on.
