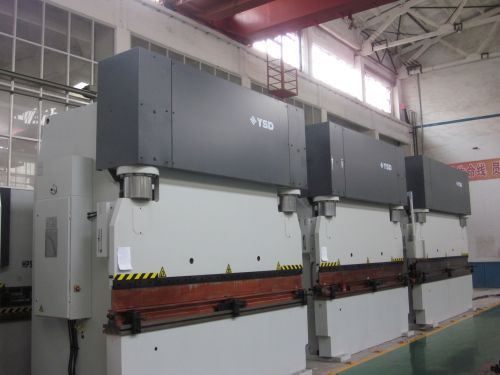

Hydraulic press brake HPB (K) CNCprecision
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- CNC
- Other characteristics
- precision
- Press force
Min.: 1,000 kN
Max.: 4,000 kN
- Folding length
3,000 mm, 3,200 mm, 4,000 mm, 5,000 mm, 6,000 mm
(118.1 in, 126 in, 157.5 in, 196.9 in, 236.2 in)- Engine power
Min.: 7.5 kW
(10.2 hp)Max.: 37 kW
(50.31 hp)- Machine length
Min.: 3,200 mm
(126 in)Max.: 6,050 mm
(238 in)- Machine width
Min.: 1,250 mm
(49.21 in)Max.: 2,355 mm
(92.72 in)- Machine height
Min.: 2,600 mm
(102.36 in)Max.: 3,890 mm
(153.15 in)- Daylight
310 mm, 350 mm, 425 mm, 500 mm, 570 mm
(12 in, 14 in, 17 in, 20 in, 22 in)- Maximale stroke
Min.: 120 mm
(5 in)Max.: 300 mm
(12 in)
Description
HPB (K) series hydraulic press brake is a bending machine controlled by hydraulic slide valve servo system. This type of bending machine features in good synchronization precision and great resistance to unbalanced load. For HPB hydraulic bending machine, the nominal pressure is 100 tons to 400 tons and width of folded plate 3 meters to 6 meters.
1. HPB (K) series press brakes is equipped with hydraulic slide valve servo system which can offer an effective and accurate control over the bending process.
2. The hydraulic press brake is characterized by good synchronization precision as well as great resistance to unbalanced load.
3. Numerical control is available for the press brakes.
4. This kind of hydraulic press brakes allows double machines’ linkage.
5. These bending machines also have the merits of convenient operation, maintenance and adjustment.
6. It is in concise structure and beautiful shape.
Mechanical-Hydraulic Level System
HPB (K) series press brakes adopt a complex, efficient and accurate mechanical-hydraulic slide valve, contributing to good synchro-accuracy and prevention against one-side loading.
Option:
1. Adjustable crowning on top tooling clamping device.
2. Adjustable crowning on worktable by manual or CNC control.
HUBEI TRI-RING METAL-FORMING EQUIPMENT is a supplier of all kinds of Hydraulic Press Brakes in China. HPB（K）series Hydraulic Press Brake is capable for producing high-quality steel products. For more information, please contact us.
