Cobot 2442E

4-axishigh-precision

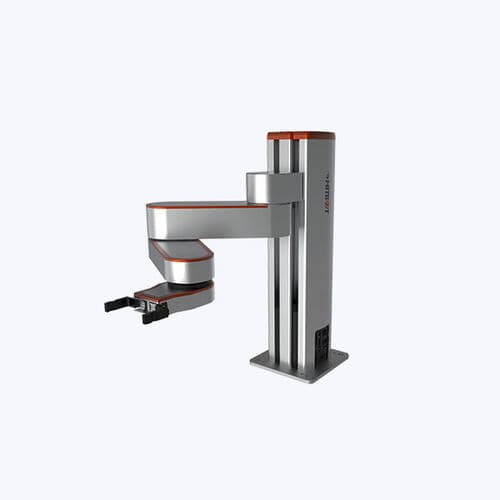

Z-Arm XX42E is a small collaborative 4-axis robot arm, it occupys small area, which is suitable to put on operating platform or built-in robot, it is an idéal selection for lightweight tasks. The product weight is about 19Kg, the max load can be up to 3Kg, the rotation angle of 1-axis is ±90°, the rotation angle of 2-axis is ±164°, the rotation range of R-axis can be up to ±1080°. The software is basing on graphie program, it provides bit, output signal, electric gripper, tray, time-lapse, sub-process and reset,etc, users can drag module through program section, to control robot arm, its interface is simple, but function is powerful. Z-Arm XX42 is small and lightweight, it saves work space, flexible to ailocate, etc, it is suitable to allocate in various of applications without changing your initial production layout, it includes fast to switch work process and complété small batch of production, etc. It can be collaborative to work with human without protective device, it can replace to work those dirty, dangerous and boring tasks, to reduce repetitive strain and accidentai injury.
